A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, consider using a voltage reference IC to improve accuracy.
The MPM38111GR-Z can drive a maximum capacitive load of 10uF. However, it's essential to consider the output impedance and the stability of the device when driving high-capacitive loads.
To ensure stability and prevent oscillations, ensure that the output capacitor is within the recommended range, and the output voltage is set using a stable voltage divider network. Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor (e.g., X5R or X7R). This ensures that the device can handle the input voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM38111GR-Z Overview

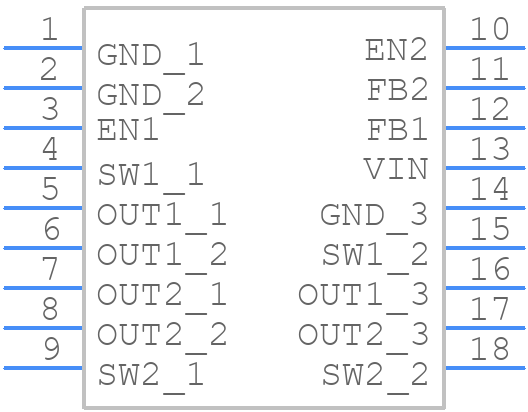

Use the download button to access the MPM38111GR-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM38,
or try a keyword search, such as Switching Regulator or Controllers
