A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW pin) away from sensitive analog nodes, and use a small, low-ESR output capacitor.
Use the datasheet's recommended compensation network values as a starting point. Then, adjust the values based on the specific application's output capacitor, inductor, and load characteristics. You can also use simulation tools or empirical methods to fine-tune the compensation network.
The MPM3814CGPA-Z can tolerate up to 10% of the input voltage as ripple. However, it's recommended to keep the input voltage ripple below 5% to ensure reliable operation and minimize the risk of overvoltage stress.
Yes, but be aware that using a different inductor value or type may affect the converter's performance, efficiency, and stability. Ensure the chosen inductor meets the datasheet's recommended inductance range and has a suitable current rating.
Use a high-accuracy voltage reference, such as an external voltage reference or a precision voltage divider, to set the output voltage. Also, ensure the feedback network is properly compensated, and the output capacitor has a low equivalent series resistance (ESR).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3814CGPA-Z Overview

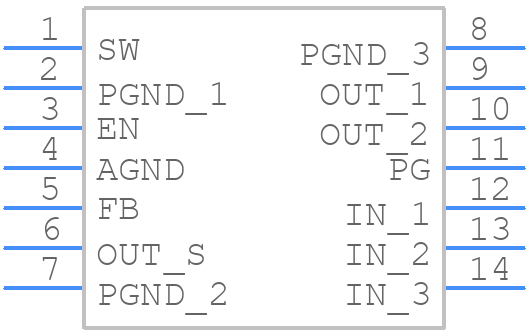

Use the download button to access the MPM3814CGPA-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM38,
or try a keyword search, such as Switching Regulator or Controllers
