MPM3822CGRH-P footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

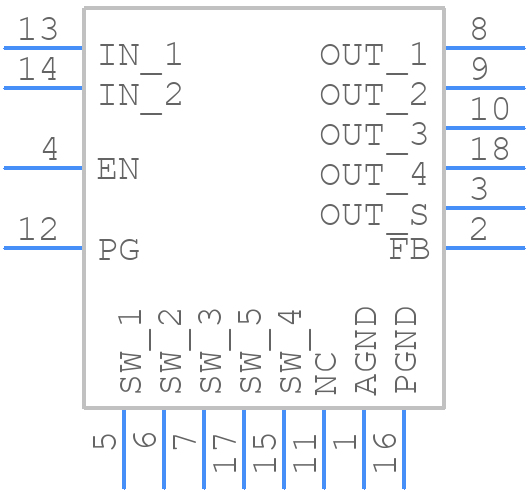

Symbol

click to zoom

PCB Footprints

MPM3822CGRH-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPM3822CGRH-P-2

click to zoom

3D Models

MPM3822CGRH-P - Monolithic Power Systems (MPS) - 3D model - Other - MPM3822CGRH-P-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPM3822CGRH-P
Part Number MPM3822CGRH-P
Manufacturer Monolithic Power Systems (MPS)
Pin Count 18
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MPM3822CGRH-P-2
Released Date Oct 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MPM3822CGRH-P Details

Manufacturer Part Number:
MPM3822CGRH-P
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Monolithic Power Systems
Analog IC - Other Type:
SWITCHING REGULATOR

Trust Checks

Expert Contribution

System Verified

Community Approved

MPM3822CGRH-P Overview

Use the download button to access the MPM3822CGRH-P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MPM38, or try a keyword search, such as Switching Regulator or Controllers
