MPM3824CGPA-Z - Monolithic Power Systems (MPS)

Description: Power Management Modules 2.75V to 6V, 2A, Ultra-Small Power Module with Ultra-Low Noise

Download MPM3824CGPA-Z Model

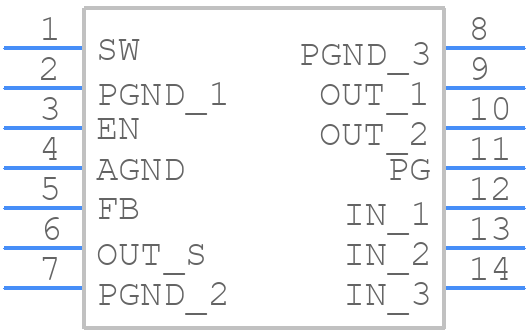

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MPM3824CGPA-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - ECLGA-14 (2.5mmx2.5mm)_2025
click to zoom
3D Models
MPM3824CGPA-Z - Monolithic Power Systems (MPS)  - 3D model - Other - ECLGA-14 (2.5mmx2.5mm)_2025
click to zoom

MPM3824CGPA-Z Details

  • Manufacturer Part Number:

    MPM3824CGPA-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ECLGA-13

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.75 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XBGA-N14

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    1.31 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1250 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.5 mm

MPM3824CGPA-Z Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW pin) away from sensitive analog nodes and ensure good thermal conduction to the PCB ground plane.
  • Choose an output capacitor with low ESR (Equivalent Series Resistance) and high capacitance (e.g., X5R or X7R ceramic capacitors). A minimum of 10uF is recommended, but 22uF or higher is preferred for better transient response.
  • Use a low-ESR ceramic capacitor (e.g., 10uF X5R or X7R) placed close to the VIN pin. Ensure the capacitor's voltage rating is higher than the maximum input voltage.
  • Use a soft-start capacitor (e.g., 10nF) connected between the SS pin and GND. This slows down the start-up and shutdown ramps, reducing inrush currents and ensuring reliable operation.
  • Keep the feedback network (FB pin to output voltage) short and direct, avoiding noise-sensitive areas. Use a separate analog ground plane or a dedicated feedback trace to minimize noise coupling.
