A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage protection, and over-current protection to prevent damage to the device. Also, ensure the device is operated within the recommended temperature range.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value between 4.7uF to 10uF. The exact value depends on the input voltage ripple and noise requirements. A larger capacitor value can help reduce input voltage ripple, but may increase the device's start-up time.
To optimize the output capacitor selection, consider the output voltage ripple, noise, and transient response requirements. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. However, the optimal value depends on the specific application requirements and should be determined through simulation and testing.
The recommended layout and placement for the inductor and capacitors involves keeping them close to the device, with the inductor placed near the input capacitors and the output capacitors placed near the output pins. This minimizes the loop area and reduces electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3860GQW-Z Overview

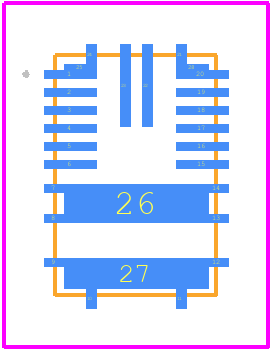

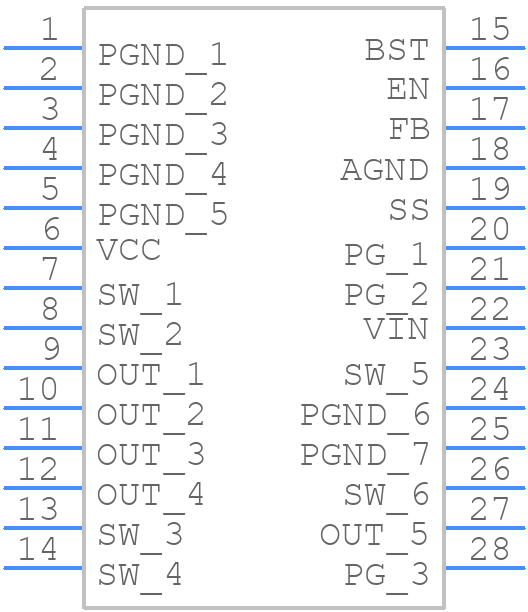

Use the download button to access the MPM3860GQW-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM38,
or try a keyword search, such as Switching Regulator or Controllers
