The maximum input voltage is 26V, but it's recommended to keep it below 24V for reliable operation and to prevent damage to the internal components.
To ensure stability, it's essential to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and keep the input voltage within the recommended range.
The minimum input voltage is 4.5V, but it's recommended to keep it above 5V for reliable operation and to ensure the output voltage remains within the specified range.
The MPQ2013GQ-Z is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage to ensure reliable operation and prevent overheating.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ2013GQ-Z Overview

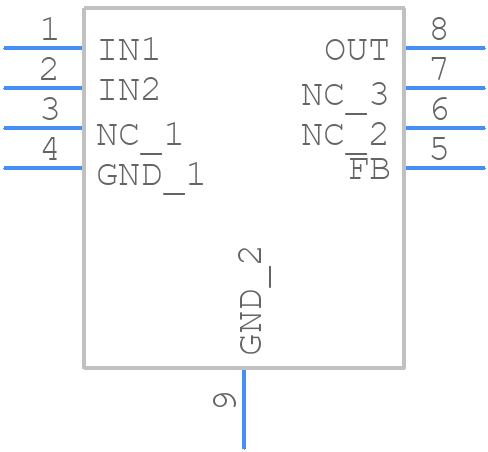

Use the download button to access the MPQ2013GQ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ20,
or try a keyword search, such as Linear Regulator ICs
