A good PCB layout for the MPQ6001 should minimize parasitic inductance and capacitance. Place the input and output capacitors close to the device, and use a solid ground plane to reduce noise. Avoid routing high-frequency signals near the device's sensitive nodes.
To ensure stability, make sure the output capacitor is properly sized and placed close to the device. Also, ensure the input voltage is within the recommended range, and the device is operated within its specified temperature range. Additionally, add a small resistor (e.g., 10 ohms) in series with the output capacitor to dampen oscillations.
The maximum safe operating area (SOA) for the MPQ6001 is not explicitly stated in the datasheet. However, as a general guideline, ensure the device's output current does not exceed 1.5A, and the output voltage does not exceed 15V. Also, avoid operating the device at high temperatures (above 125°C) for extended periods.
While the MPQ6001 is a reliable device, it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure it meets the necessary standards for your application.
To troubleshoot issues with the MPQ6001, start by verifying the input voltage, output current, and output voltage are within the recommended specifications. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ6001 Overview

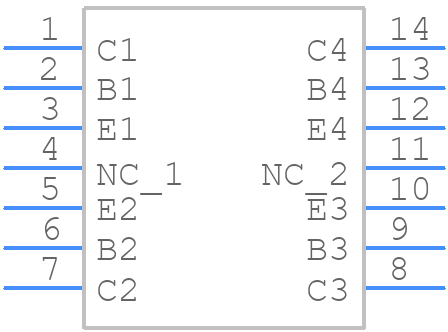

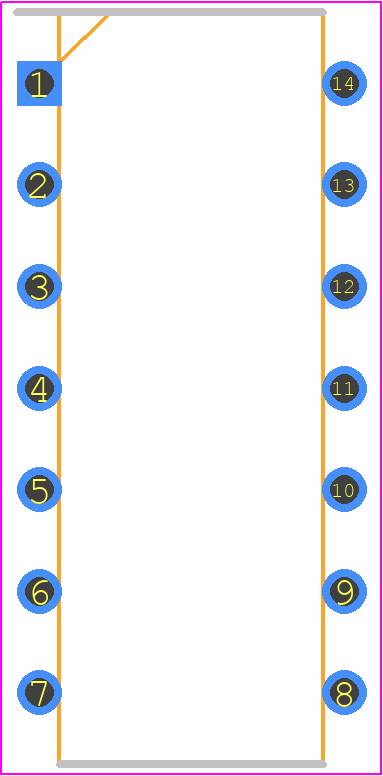

Use the download button to access the MPQ6001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ60,
or try a keyword search, such as Power Bipolar Transistors
