MPQ8626GD-Z - Monolithic Power Systems (MPS)

Description: 16V, 6A, High Efficiency, Synchronous, Step-Down Converter with Adjustable Current Limit

Download MPQ8626GD-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

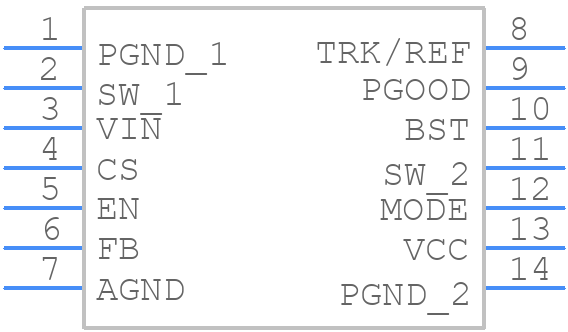

MPQ8626GD-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MPQ8626GD-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPQ8626GD-Z-1
click to zoom
3D Models
MPQ8626GD-Z - Monolithic Power Systems (MPS) - 3D model - Other - MPQ8626GD-Z-1
click to zoom

MPQ8626GD-Z Details

  • Manufacturer Part Number:

    MPQ8626GD-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N14

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2530 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MPQ8626GD-Z Frequently Asked Questions (FAQs)

  • The MPQ8626GD-Z can handle a maximum input voltage of 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The MPQ8626GD-Z can provide a maximum output current of 2A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
  • The output voltage of the MPQ8626GD-Z can be adjusted by using a resistor divider network between the FB pin and the output voltage pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin on the MPQ8626GD-Z is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
