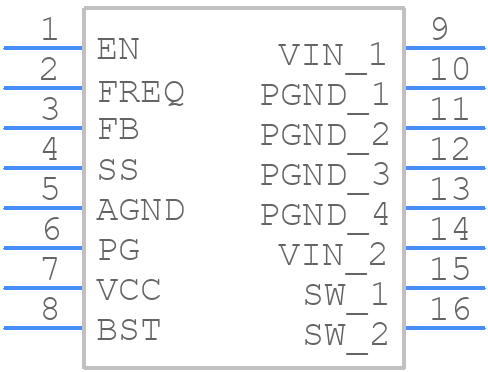

MPQ8632GLE-4-Z - Monolithic Power Systems (MPS)

MPQ8632GLE-4-Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the IC.
• How do I ensure stability and prevent oscillations in the output voltage?
  Ensure the output capacitor has a low ESR, use a minimum of 10uF output capacitance, and add a 1nF-10nF ceramic capacitor in parallel with the output capacitor to prevent oscillations.
• What is the maximum input voltage that can be applied to the VIN pin?
  The maximum input voltage is 26V, but it's recommended to keep it below 24V for optimal reliability and performance.
• Can I use the MPQ8632GLE-4-Z in a high-temperature environment?
  Yes, the device is rated for operation up to 125°C, but ensure proper thermal design and derate the output current accordingly to prevent overheating.
• How do I adjust the output voltage to a specific value?
  Use the FB pin and an external resistor divider network to set the output voltage. The datasheet provides a formula to calculate the required resistor values.
