A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage protection, and over-current protection to prevent damage to the device. Also, ensure the device is operated within the recommended temperature range.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is dependent on the output capacitor value, ESR, and the switching frequency. The noise can be calculated using the noise spectral density and the bandwidth of interest.
The recommended output capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ8636HGLE-10-Z Overview

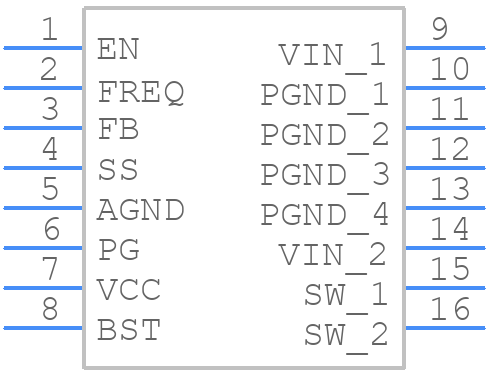

Use the download button to access the MPQ8636HGLE-10-Z schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ86,
or try a keyword search, such as Switching Regulator or Controllers
