A good PCB layout for the MPQ9843GL-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To optimize the compensation network, start by following the datasheet's recommended compensation values. Then, use simulation tools or empirical methods to fine-tune the values based on your specific application's requirements. Pay attention to the crossover frequency, phase margin, and gain margin to ensure stability.
Although the datasheet doesn't specify a maximum allowed input voltage ripple, a general rule of thumb is to keep the input voltage ripple below 1% of the nominal input voltage. Excessive input voltage ripple can affect the device's stability and performance.
While ceramic capacitors can be used for COUT, they may not be the best choice due to their limited capacitance and high equivalent series resistance (ESR). A low-ESR electrolytic capacitor or a polymer capacitor is recommended for COUT to ensure good output voltage regulation and stability.
The minimum input capacitance required depends on the input voltage, output current, and switching frequency. A general guideline is to use a minimum of 10uF to 22uF of input capacitance for every 1A of output current. However, it's recommended to consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ9843GL-Z Overview

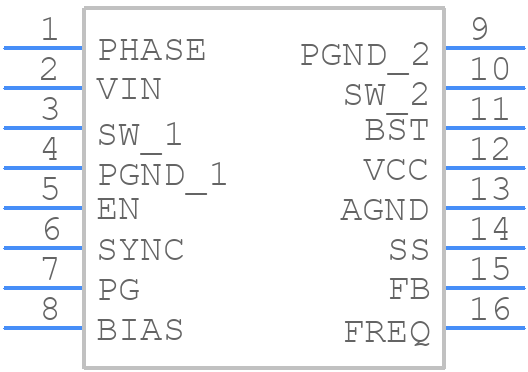

Use the download button to access the MPQ9843GL-Z schematic symbol, PCB footprint, and 3D model.
