The recommended layout and placement for the MPR121QR2 involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the touch electrodes to minimize noise and ensure optimal performance.
To optimize the touch electrode design, consider the electrode size, shape, and spacing, as well as the material and thickness of the electrode. A larger electrode size can improve sensitivity, but may also increase noise. A good starting point is to use electrodes with a diameter of 5-10mm, spaced 5-10mm apart.
The recommended power-up sequence for the MPR121QR2 involves applying VDD first, followed by VSS, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-related issues.
To handle EMI with the MPR121QR2, use shielding, filtering, and grounding techniques to minimize electromagnetic radiation. Keep the device and electrodes away from high-frequency sources, and use a metal shield or Faraday cage to enclose the device and electrodes.
For debugging and troubleshooting the MPR121QR2, use a logic analyzer or oscilloscope to monitor the device's signals, and check the device's registers and status bits to identify any errors or issues. Consult the datasheet and application notes for guidance on specific debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPR121QR2 Overview

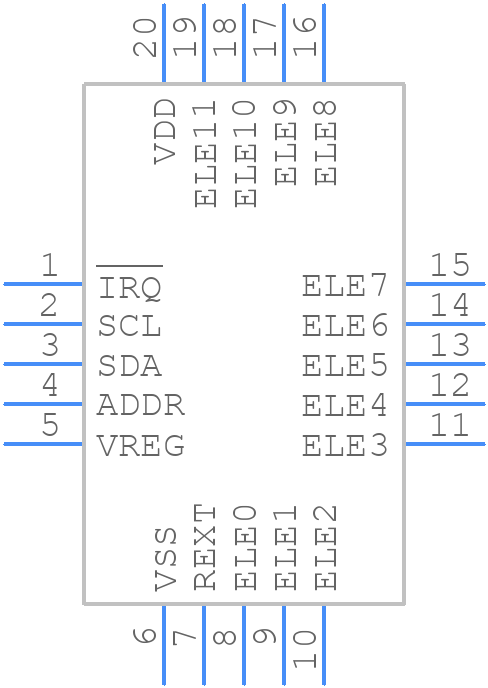

Use the download button to access the MPR121QR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPR12,
or try a keyword search, such as Other Signal Circuits
Suggested Parts
If you searched for MPR121QR2, you might also be interested in these parts:
