MPRM28AF360M120A00 - VICOR

Description: Non-Isolated PoL Module DC DC Converter 1 Output 26 ~ 50V 5.56A 14V - 50V Input

Download MPRM28AF360M120A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

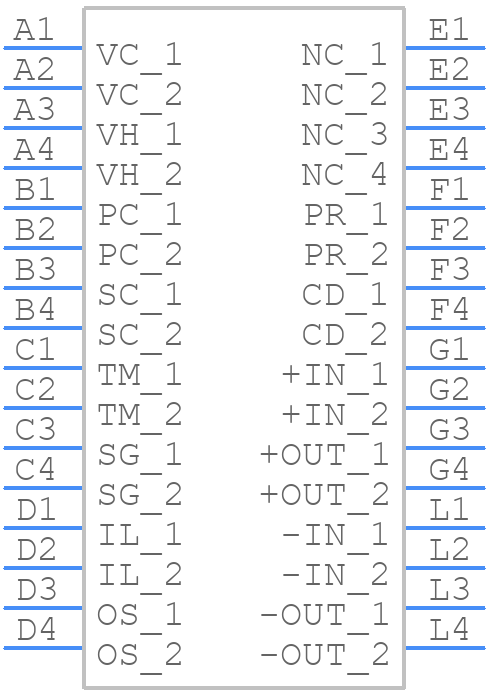

MPRM28AF360M120A00 - VICOR - PCB symbol
click to zoom
PCB Footprints

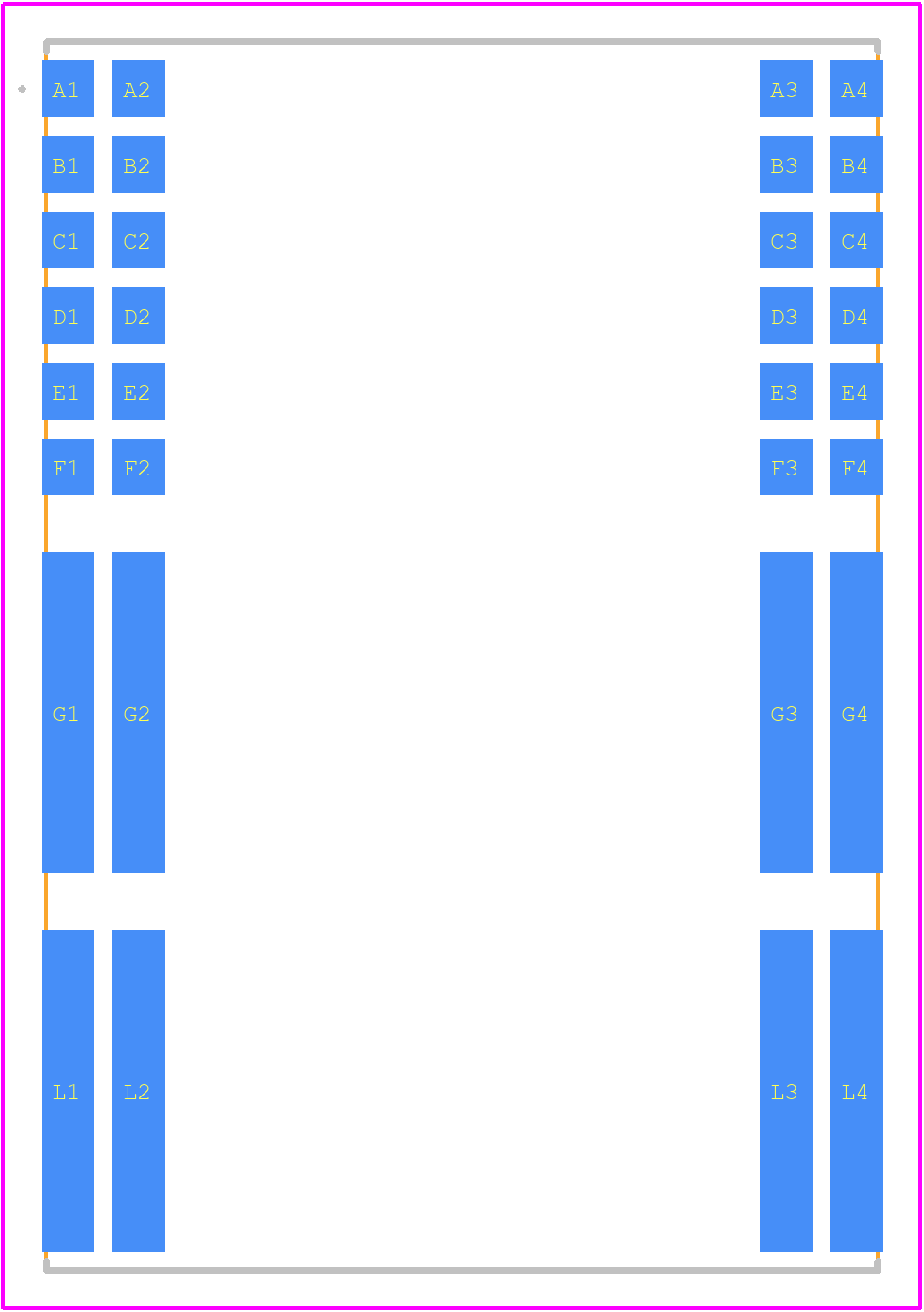

MPRM28AF360M120A00 - VICOR PCB footprint - Other - Other - 32.5 x 22.0 x 6.73mm
click to zoom
3D Models
MPRM28AF360M120A00 - VICOR - 3D model - Other - 32.5 x 22.0 x 6.73mm
click to zoom

MPRM28AF360M120A00 Details

  • Manufacturer Part Number:

    MPRM28AF360M120A00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    ZVS

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XQMA-N56

  • Length:

    32.5 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    5.56 A

  • Output Voltage-Max:

    50 V

  • Output Voltage-Min:

    26 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Supply Current-Max (Isup):

    7600 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1450 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    22 mm

MPRM28AF360M120A00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
  • While the module is rated for operation up to 100°C, Vicor recommends derating the output power by 1% per degree above 80°C to ensure reliable operation. Additionally, ensure proper airflow and thermal management to prevent overheating.
  • The module has a built-in temperature monitoring pin (VTM) that can be connected to a microcontroller or a temperature monitoring IC. The VTM pin outputs a voltage proportional to the module's temperature.
