MPRM28AT360M120A00 - VICOR

Description: FULL ChiP package 1.28 x 0.866 x 0.265in / 32.5 x 22.0 x 6.73mm,VIN = 14.0 – 50.0V,POUT = 200W,IOUT = 5.56A.

Download MPRM28AT360M120A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPRM28AT360M120A00 - VICOR - PCB symbol
click to zoom
PCB Footprints

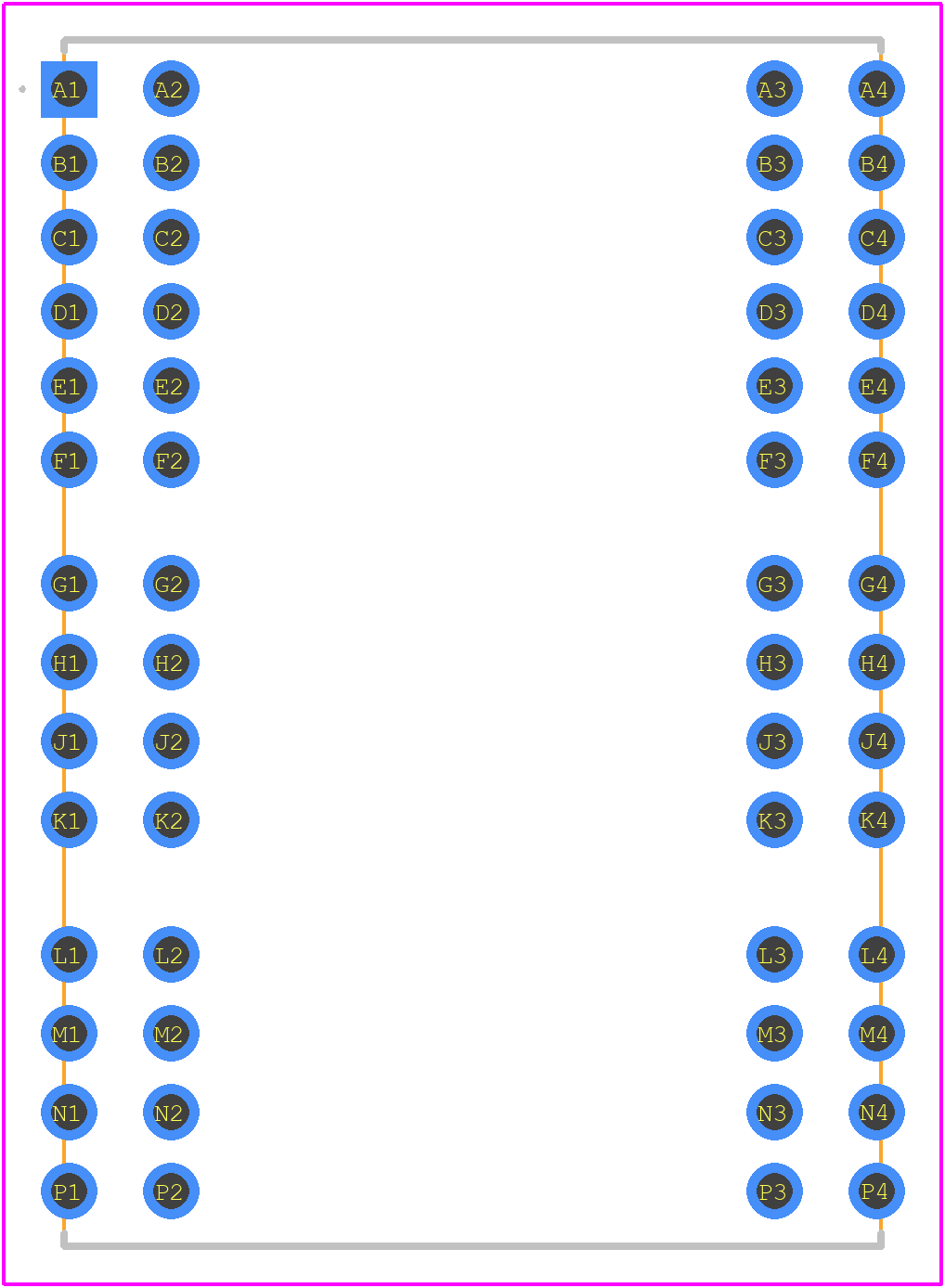

MPRM28AT360M120A00 - VICOR PCB footprint - Other - Other - MPRM28AT360M120A00-1
click to zoom
3D Models
MPRM28AT360M120A00 - VICOR - 3D model - Other - MPRM28AT360M120A00-1
click to zoom

MPRM28AT360M120A00 Details

  • Manufacturer Part Number:

    MPRM28AT360M120A00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    ZVS

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XQMA-T56

  • Length:

    32.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    5.56 A

  • Output Voltage-Max:

    50 V

  • Output Voltage-Min:

    26 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Supply Current-Max (Isup):

    7600 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1450 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    QUAD

  • Width:

    22 mm

MPRM28AT360M120A00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidelines for capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is typically specified in the datasheet or application notes. For the MPRM28AT360M120A00, the recommended input capacitor ripple current is 1.5A RMS, and the recommended output capacitor ripple current is 2.5A RMS.
  • Vicor provides guidelines for EMC and EMI compliance in their application notes and datasheets. It's recommended to follow these guidelines, which include proper PCB layout, shielding, and filtering to ensure compliance with relevant standards such as EN55022 and CISPR22.
  • The recommended startup and shutdown sequence for the MPRM28AT360M120A00 is typically specified in the datasheet or application notes. It's recommended to follow a soft-start sequence to prevent inrush currents and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPRM28AT360M120A00 Overview

Use the download button to access the MPRM28AT360M120A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPRM2, or try a keyword search, such as Switching Regulator or Controllers
