MPS-02-7.70-01-L-V - SAMTEC

Description: Samtec MPS Series 5mm 2 Way 1 Row Straight PCB Socket Through Hole Board to Board

Download MPS-02-7.70-01-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPS-02-7.70-01-L-V - SAMTEC - PCB symbol
click to zoom
PCB Footprints

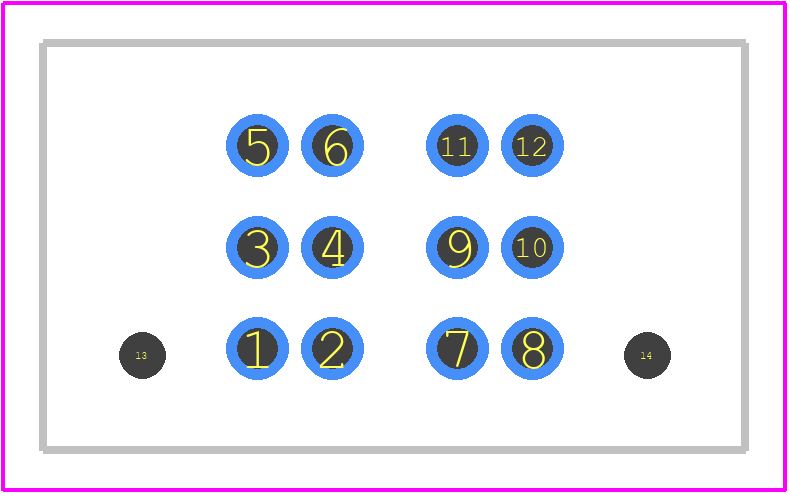

MPS-02-7.70-01-L-V - SAMTEC PCB footprint - Other - Other - MPS-02-7.70-01-L-V
click to zoom
3D Models
MPS-02-7.70-01-L-V - SAMTEC - 3D model - Other - MPS-02-7.70-01-L-V
click to zoom

MPS-02-7.70-01-L-V Details

  • Manufacturer Part Number:

    MPS-02-7.70-01-L-V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    0.691 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

MPS-02-7.70-01-L-V Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MPS-02-7.70-01-L-V is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the MPS-02-7.70-01-L-V is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The MPS-02-7.70-01-L-V has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including high-temperature environments.
  • Yes, the MPS-02-7.70-01-L-V is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The typical lead time for delivery of the MPS-02-7.70-01-L-V varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPS-02-7.70-01-L-V Overview

Use the download button to access the MPS-02-7.70-01-L-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPS-0, or try a keyword search, such as Power Connectors
