MPS-03-7.70-01-L-V - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Leaf Socket Strip

Download MPS-03-7.70-01-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

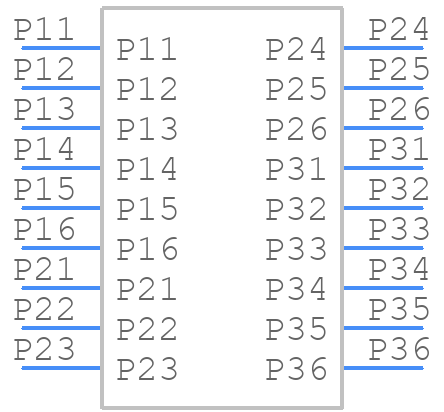

MPS-03-7.70-01-L-V - SAMTEC - PCB symbol
click to zoom
PCB Footprints
MPS-03-7.70-01-L-V - SAMTEC PCB footprint - Other - Other - MPS-03-7.70-01-L-V-1
click to zoom
3D Models
MPS-03-7.70-01-L-V - SAMTEC - 3D model - Other - MPS-03-7.70-01-L-V-1
click to zoom

MPS-03-7.70-01-L-V Details

  • Manufacturer Part Number:

    MPS-03-7.70-01-L-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    0.888 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

MPS-03-7.70-01-L-V Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MPS-03-7.70-01-L-V is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the MPS-03-7.70-01-L-V is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections in demanding applications.
  • The operating temperature range for the MPS-03-7.70-01-L-V is -55°C to +125°C, making it suitable for use in a wide range of applications, from industrial to aerospace.
  • Yes, the MPS-03-7.70-01-L-V is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of the MPS-03-7.70-01-L-V varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 1-2 weeks for standard orders, and expedited shipping options are available for urgent requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPS-03-7.70-01-L-V Overview

Use the download button to access the MPS-03-7.70-01-L-V schematic symbol, PCB footprint, and 3D model.
