MPS-04-7.70-03-L-V - SAMTEC

Description: SAMTEC - MPS-04-7.70-03-L-V - Board-To-Board Connector, 5 mm, 4 Contacts, Receptacle, MPS Series, Through Hole, 1 Rows

Download MPS-04-7.70-03-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

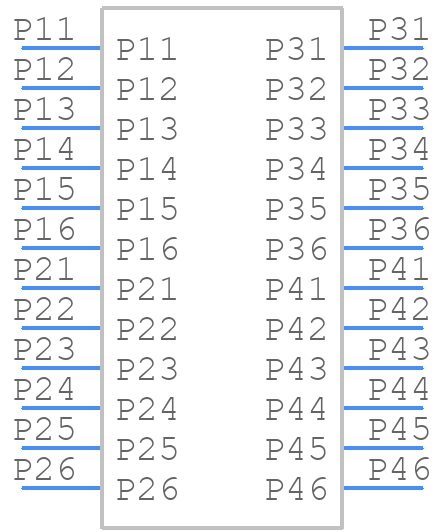

MPS-04-7.70-03-L-V - SAMTEC - PCB symbol
click to zoom
PCB Footprints

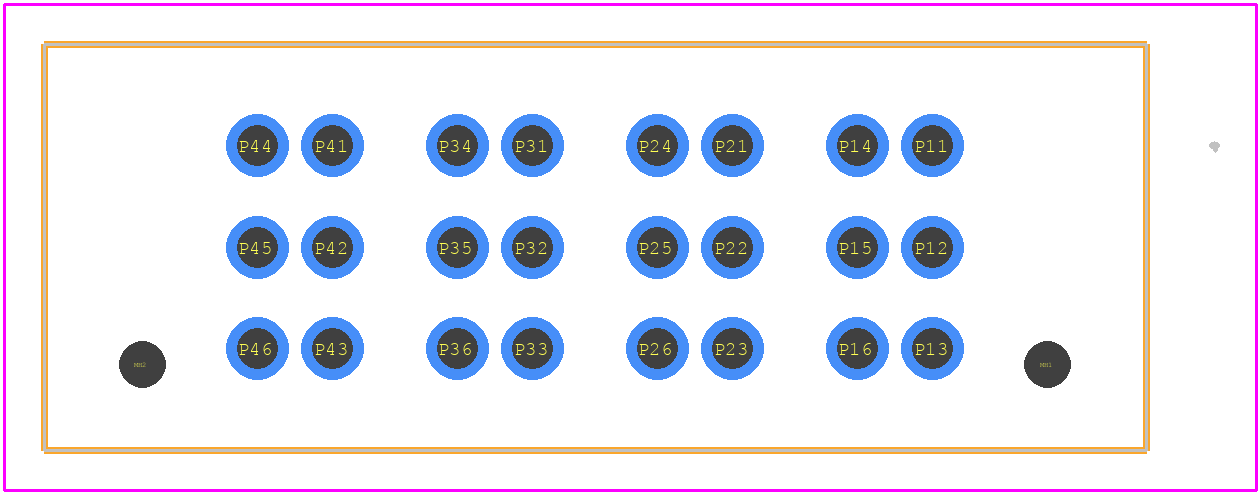

MPS-04-7.70-03-L-V - SAMTEC PCB footprint - Other - Other - MPS-04-7.70-03-L-V-2
click to zoom
3D Models
MPS-04-7.70-03-L-V - SAMTEC - 3D model - Other - MPS-04-7.70-03-L-V-2
click to zoom

MPS-04-7.70-03-L-V Details

  • Manufacturer Part Number:

    MPS-04-7.70-03-L-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    4 Weeks, 2 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.085 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

MPS-04-7.70-03-L-V Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MPS-04-7.70-03-L-V connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the MPS-04-7.70-03-L-V connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the MPS-04-7.70-03-L-V connector is 125°C (257°F).
  • The MPS-04-7.70-03-L-V connector is not designed for use in humid or wet environments. If your application requires exposure to moisture, consider using a connector with a higher IP rating or consult with Samtec for custom solutions.
  • The mating cycle life of the MPS-04-7.70-03-L-V connector is 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPS-04-7.70-03-L-V Overview

Use the download button to access the MPS-04-7.70-03-L-V schematic symbol, PCB footprint, and 3D model.
