MPS-06-7.70-03-L-V - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Leaf Socket Strip

Download MPS-06-7.70-03-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

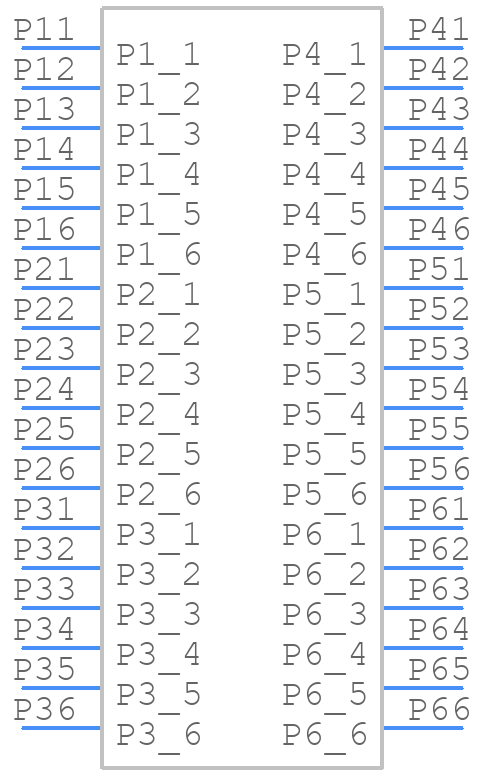

MPS-06-7.70-03-L-V - SAMTEC - PCB symbol
click to zoom
PCB Footprints

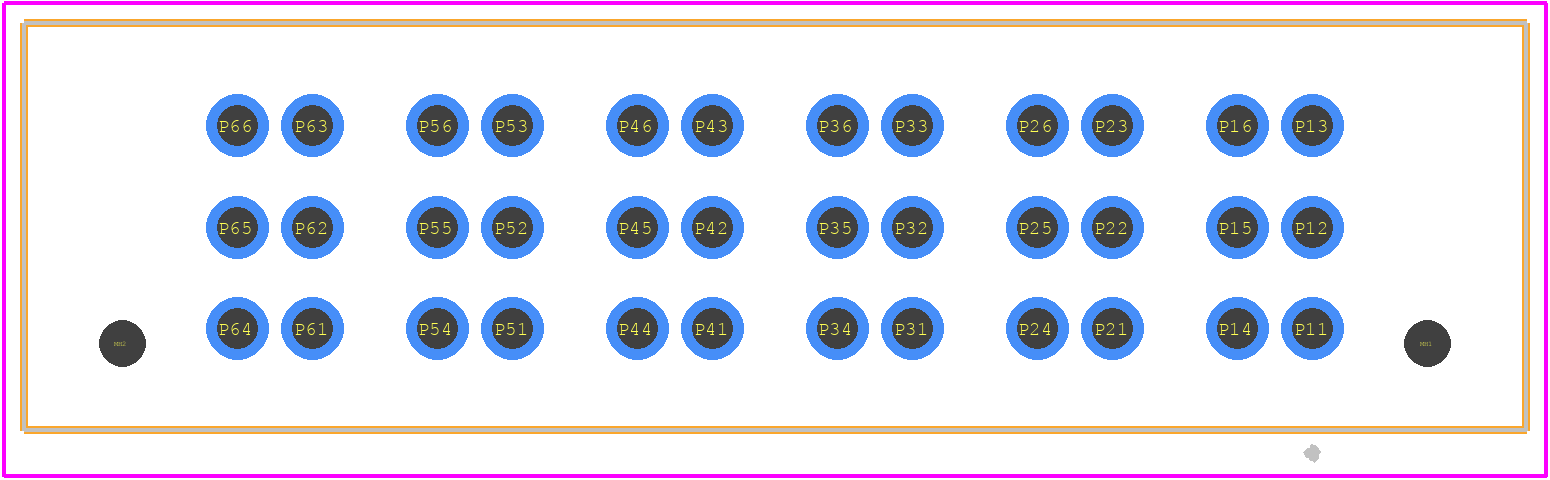

MPS-06-7.70-03-L-V - SAMTEC PCB footprint - Other - Other - MPS-06-7.70-03-L-V-2
click to zoom
3D Models
MPS-06-7.70-03-L-V - SAMTEC - 3D model - Other - MPS-06-7.70-03-L-V-2
click to zoom

MPS-06-7.70-03-L-V Details

  • Manufacturer Part Number:

    MPS-06-7.70-03-L-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.479 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

MPS-06-7.70-03-L-V Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MPS-06-7.70-03-L-V connector is to mate the contacts first, followed by the outer shell. This ensures proper alignment and prevents damage to the connector.
  • Yes, the MPS-06-7.70-03-L-V connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The MPS-06-7.70-03-L-V connector has an operating temperature range of -55°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified range.
  • It's not recommended to mate the MPS-06-7.70-03-L-V connector with a connector from a different manufacturer, as compatibility and performance cannot be guaranteed. It's best to use mating connectors from the same manufacturer to ensure optimal performance and reliability.
  • The typical lead time for the MPS-06-7.70-03-L-V connector can vary depending on the quantity, shipping location, and availability. It's best to check with authorized distributors or Samtec Inc directly for the most up-to-date lead time information.
