MPS-08-01-01-L-RA-SD - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Leaf Socket Strip

Download MPS-08-01-01-L-RA-SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

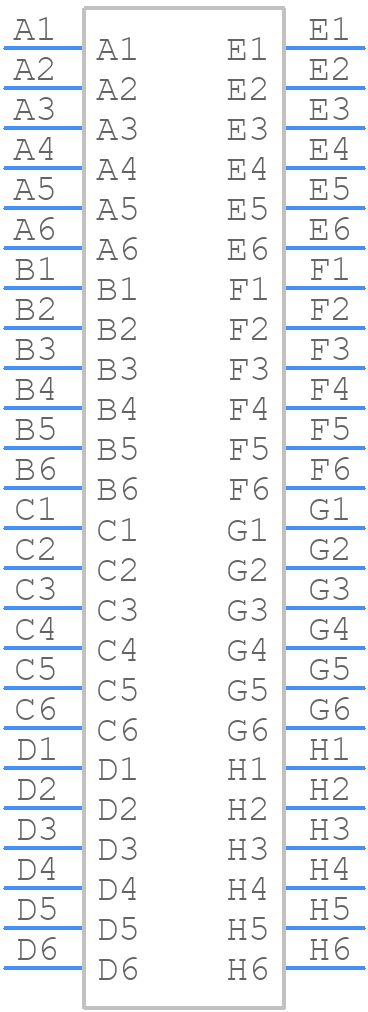

MPS-08-01-01-L-RA-SD - SAMTEC - PCB symbol
click to zoom
PCB Footprints

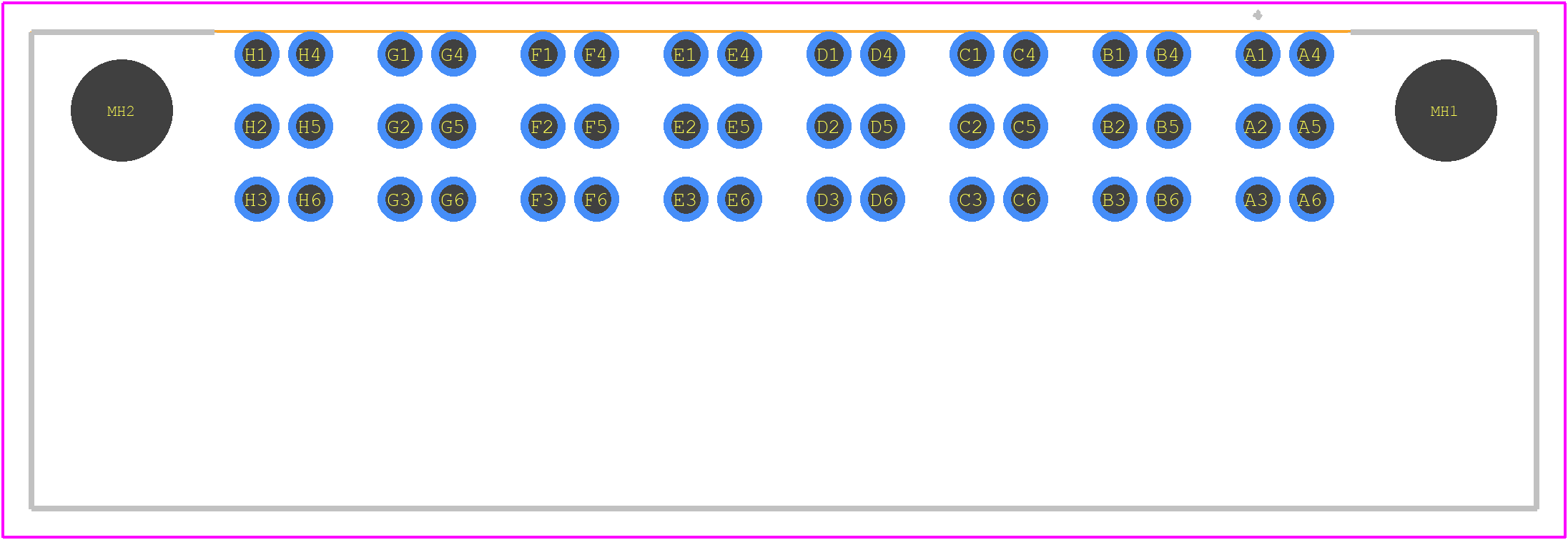

MPS-08-01-01-L-RA-SD - SAMTEC PCB footprint - Other - Other - MPS-08-01-01-L-RA-SD-4
click to zoom
3D Models
MPS-08-01-01-L-RA-SD - SAMTEC - 3D model - Other - MPS-08-01-01-L-RA-SD-4
click to zoom

MPS-08-01-01-L-RA-SD Details

  • Manufacturer Part Number:

    MPS-08-01-01-L-RA-SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.873 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

MPS-08-01-01-L-RA-SD Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MPS-08-01-01-L-RA-SD connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the MPS-08-01-01-L-RA-SD connector is designed to withstand high-vibration environments. Samtec's RA (Ruggedized Array) series connectors, including this one, have been tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing.
  • The maximum operating temperature for the MPS-08-01-01-L-RA-SD connector is 125°C (257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and the materials used in the system.
  • The MPS-08-01-01-L-RA-SD connector has a sealed design that provides protection against moisture and other environmental factors. However, it's still important to consult with Samtec or a qualified engineer to determine the connector's suitability for specific harsh environments.
  • The MPS-08-01-01-L-RA-SD connector is designed for use with standard 1.6 mm (0.063 in) thick PCBs. While it may be possible to use it with different PCB thicknesses or materials, it's essential to consult with Samtec or a qualified engineer to ensure compatibility and prevent potential issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPS-08-01-01-L-RA-SD Overview

Use the download button to access the MPS-08-01-01-L-RA-SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPS-0, or try a keyword search, such as Power Connectors
