MPT-03-6.30-01-L-V footprint, schematic symbol and 3D model by SAMTEC

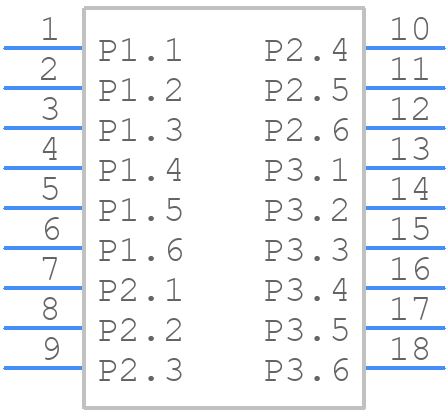

Symbol

click to zoom

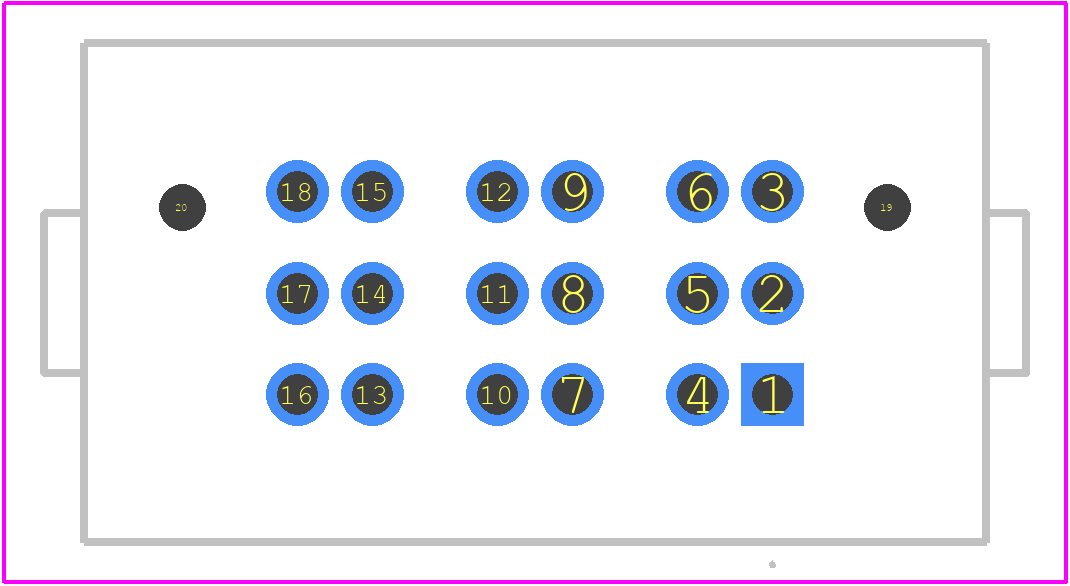

PCB Footprints

MPT-03-6.30-01-L-V - SAMTEC PCB footprint - Other - Other - MPT-03-6.30-01-L-V-3

click to zoom

3D Models

MPT-03-6.30-01-L-V - SAMTEC - 3D model - Other - MPT-03-6.30-01-L-V-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPT-03-6.30-01-L-V
Part Number MPT-03-6.30-01-L-V
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - MPT-03-6.30-01-L-V-3
Released Date Oct 7, 2025
Last Modified Date Dec 23, 2025 11:29 AM UTC
Pinout / Pin List Click Here (Member Only)

MPT-03-6.30-01-L-V Details

Manufacturer Part Number:
MPT-03-6.30-01-L-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 5 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER): 28A
Body Breadth:
0.49 inch
Body Depth:
0.448 inch
Body Length:
0.888 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
3
UL Flammability Code:
94V-0

MPT-03-6.30-01-L-V Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on MPT-03-6.30-01-L-V is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, MPT-03-6.30-01-L-V is designed to withstand high-vibration environments. Samtec's MPT series is tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing up to 57.3 m/s² (20-2000 Hz).
The operating temperature range of MPT-03-6.30-01-L-V is -55°C to 125°C, according to Samtec's datasheet.
Yes, MPT-03-6.30-01-L-V is compatible with lead-free soldering processes. Samtec's MPT series is designed to meet the requirements of RoHS and WEEE directives.
The mating cycle life of MPT-03-6.30-01-L-V is 500 cycles minimum, according to Samtec's datasheet.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MPT-03-6.30-01-L-V Overview

Use the download button to access the MPT-03-6.30-01-L-V schematic symbol, PCB footprint, and 3D model.
