MPT-04-01-01-L-RA-LC - SAMTEC

Description: 5.00 mm PowerStrip™/30 A Dual Blade Terminal Strip

Download MPT-04-01-01-L-RA-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

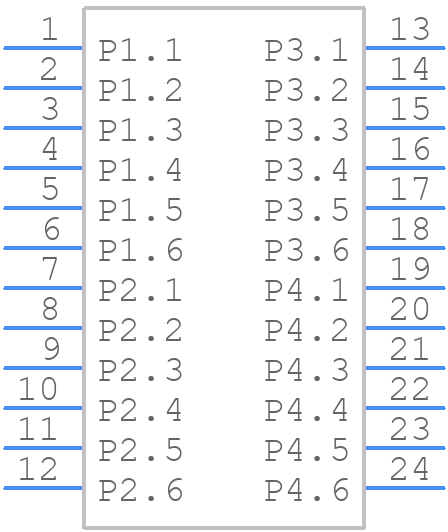

MPT-04-01-01-L-RA-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

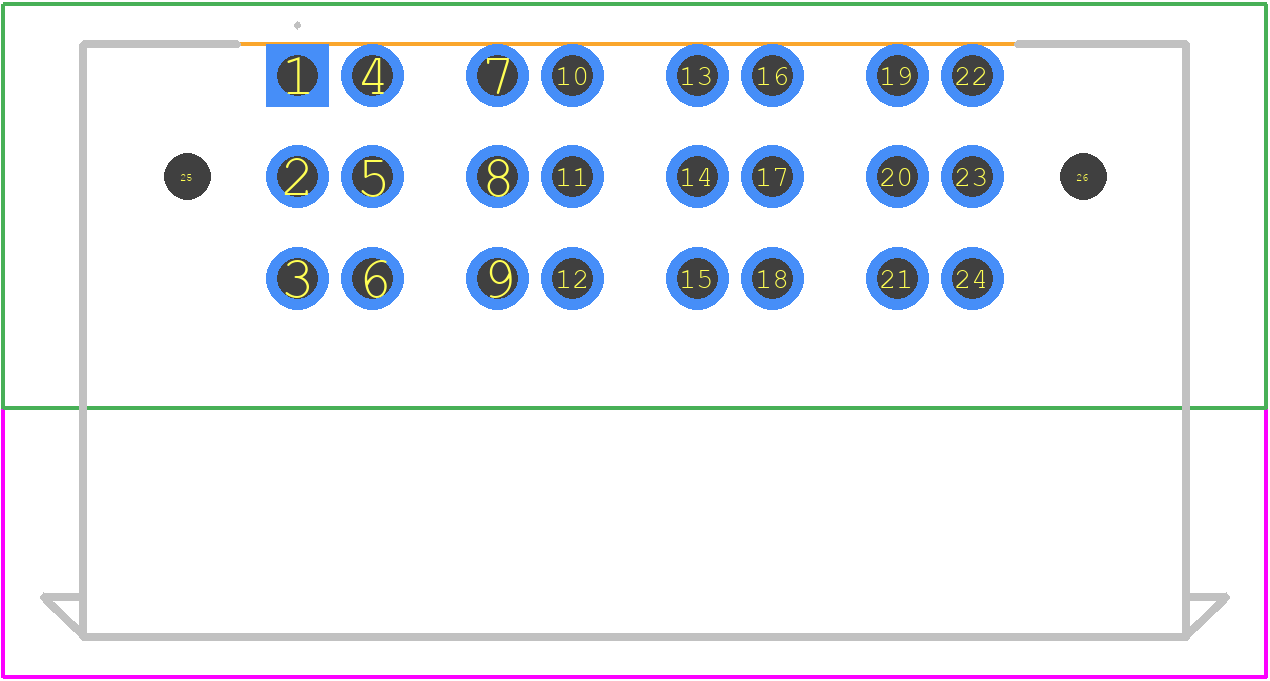

MPT-04-01-01-L-RA-LC - SAMTEC PCB footprint - Other - Other - MPT-04-01-01-L-RA-LC-2
click to zoom
3D Models
MPT-04-01-01-L-RA-LC - SAMTEC - 3D model - Other - MPT-04-01-01-L-RA-LC-2
click to zoom

MPT-04-01-01-L-RA-LC Details

  • Manufacturer Part Number:

    MPT-04-01-01-L-RA-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.24

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

MPT-04-01-01-L-RA-LC Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MPT-04-01-01-L-RA-LC connector is to mate the contacts first, followed by the latches. This ensures proper alignment and prevents damage to the connector.
  • Yes, the MPT-04-01-01-L-RA-LC connector is designed to withstand high-vibration environments. Samtec's MPT series connectors are tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing.
  • The MPT-04-01-01-L-RA-LC connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the MPT-04-01-01-L-RA-LC connector is designed for automated assembly and is compatible with standard pick-and-place machines. Samtec provides detailed assembly instructions and recommends consulting with their application engineers for specific guidance.
  • The typical lead time for delivery of the MPT-04-01-01-L-RA-LC connector varies depending on the quantity and availability. However, Samtec typically quotes a lead time of 2-4 weeks for standard orders. Expedited delivery options may be available upon request.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPT-04-01-01-L-RA-LC Overview

Use the download button to access the MPT-04-01-01-L-RA-LC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPT-0, or try a keyword search, such as Power Connectors
