MPT-04-01-01-T-RA-SD footprint, schematic symbol and 3D model by SAMTEC

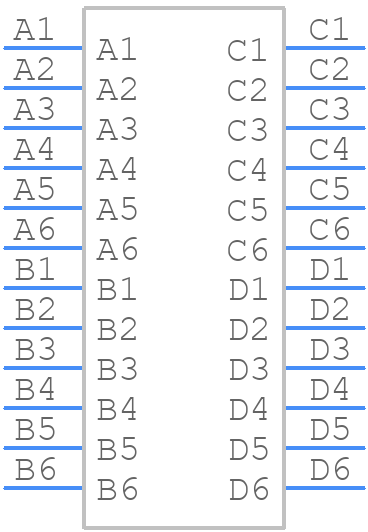

Symbol

click to zoom

PCB Footprints

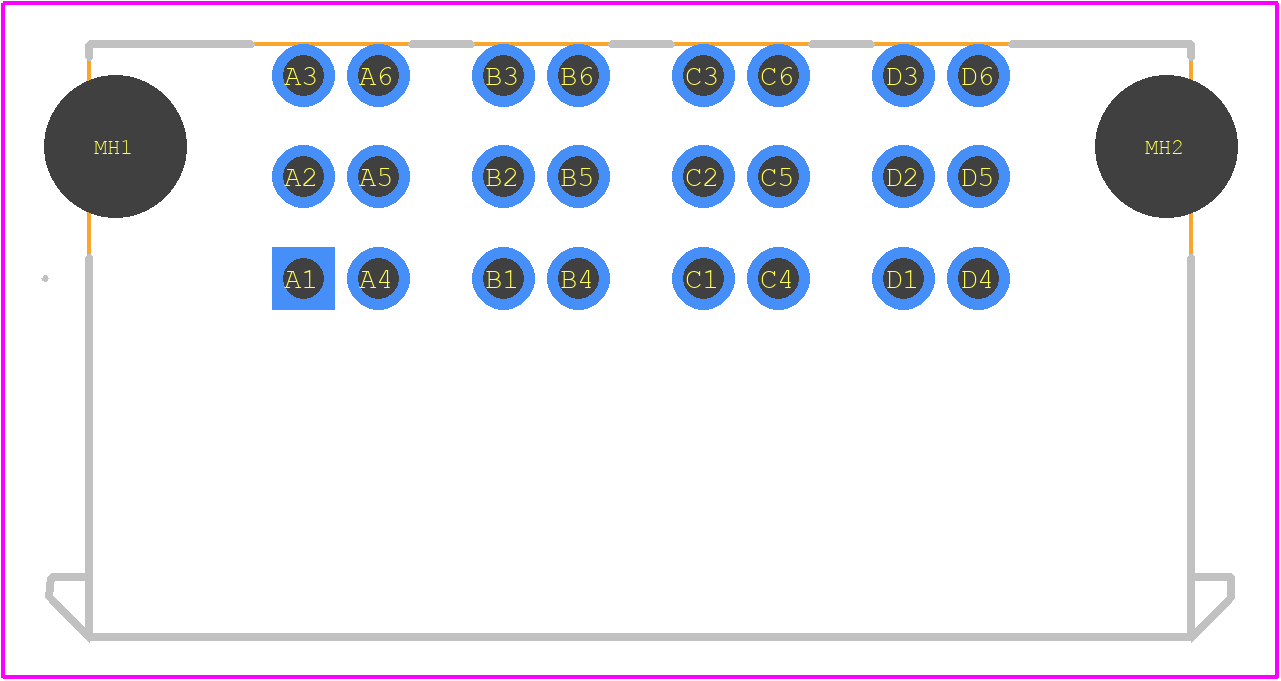

MPT-04-01-01-T-RA-SD - SAMTEC PCB footprint - Other - Other - MPT-04-01-01-T-RA-SD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPT-04-01-01-T-RA-SD
Part Number MPT-04-01-01-T-RA-SD
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - MPT-04-01-01-T-RA-SD-2
Released Date Mar 30, 2023
Last Modified Date Mar 30, 2023 9:23 AM UTC
Pinout / Pin List Click Here (Member Only)

MPT-04-01-01-T-RA-SD Details

Manufacturer Part Number:
MPT-04-01-01-T-RA-SD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 5 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER): 28A
Body Breadth:
0.49 inch
Body Depth:
0.448 inch
Body Length:
1.085 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

MPT-04-01-01-T-RA-SD Frequently Asked Questions (FAQs)

The recommended mating sequence for the MPT-04-01-01-T-RA-SD connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
The MPT-04-01-01-T-RA-SD connector has a polarized keying system to prevent mis-mating. Ensure that the keying feature on the plug is aligned with the corresponding feature on the receptacle during mating.
The MPT-04-01-01-T-RA-SD connector is rated for operation in temperatures ranging from -55°C to +125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
Yes, the MPT-04-01-01-T-RA-SD connector is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The recommended torque for the screw locks on the MPT-04-01-01-T-RA-SD connector is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

Community Provided

System Verified

Community Approved

MPT-04-01-01-T-RA-SD Overview

Use the download button to access the MPT-04-01-01-T-RA-SD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MPT-0, or try a keyword search, such as Power Connectors
