MPT-04-6.30-01-T-V - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Blade Terminal Strip

Download MPT-04-6.30-01-T-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

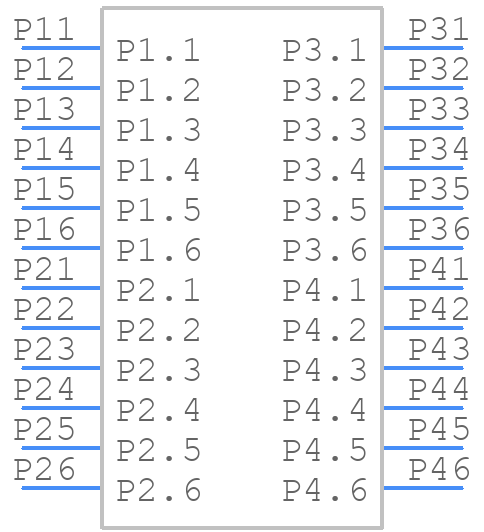

MPT-04-6.30-01-T-V - SAMTEC - PCB symbol
click to zoom
PCB Footprints

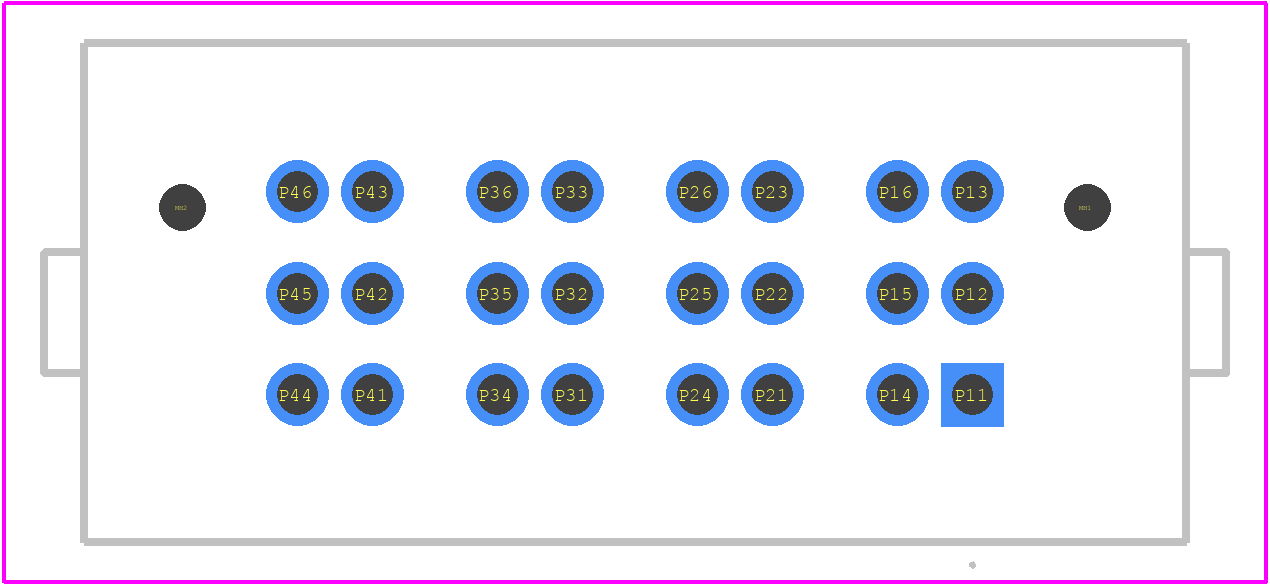

MPT-04-6.30-01-T-V - SAMTEC PCB footprint - Other - Other - MPT-04-6.30-01-T-V-5
click to zoom
3D Models
MPT-04-6.30-01-T-V - SAMTEC - 3D model - Other - MPT-04-6.30-01-T-V-5
click to zoom

MPT-04-6.30-01-T-V Details

  • Manufacturer Part Number:

    MPT-04-6.30-01-T-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.085 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

MPT-04-6.30-01-T-V Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the MPT-04-6.30-01-T-V is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the MPT-04-6.30-01-T-V is -40°C to 105°C (-40°F to 221°F).
  • While the MPT-04-6.30-01-T-V is designed to be rugged, it's not recommended for use in extremely harsh environments. For such applications, consider using a connector with additional environmental protection, such as a sealed or hermetically sealed connector.
  • The MPT-04-6.30-01-T-V is designed for signal integrity and can support high-speed data transmission up to 10 Gbps. However, the actual data transmission speed may vary depending on the specific application and system design.
