MPT-06-01-01-L-RA-LC - SAMTEC

Description: 6 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle , 575V , 28.8A , -55°C ~ 125°C

Download MPT-06-01-01-L-RA-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

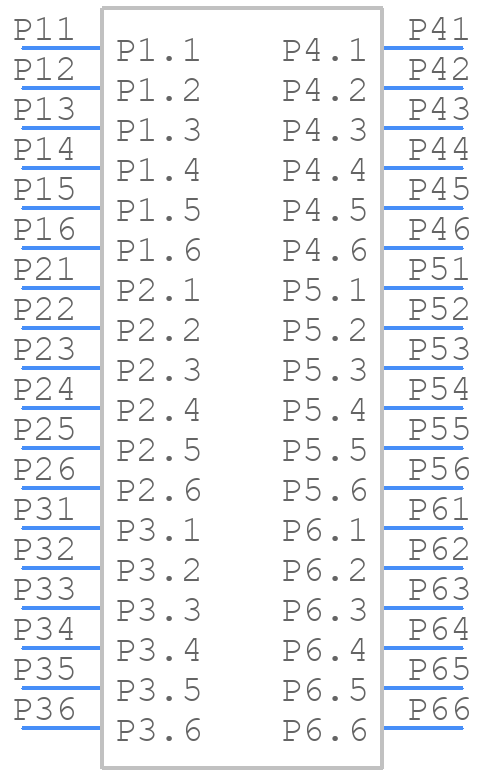

Symbol
MPT-06-01-01-L-RA-LC - SAMTEC - PCB symbol
click to zoom

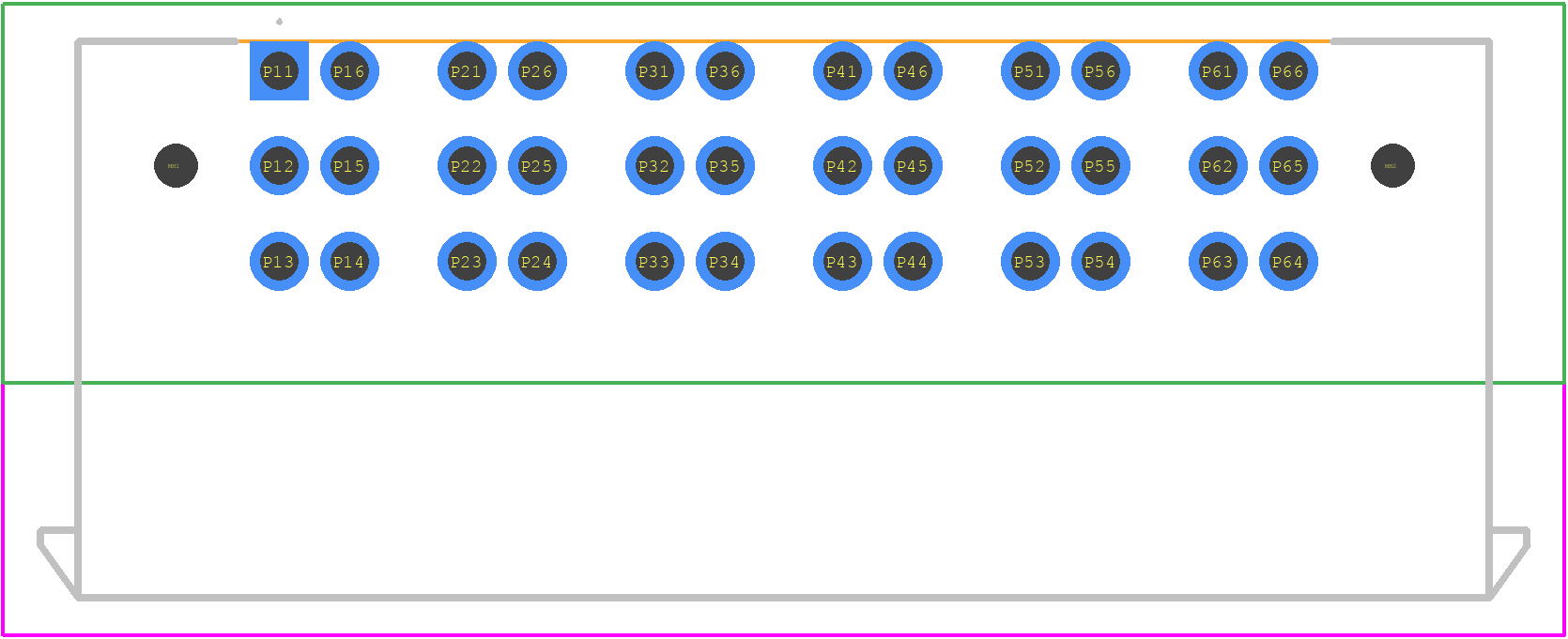

PCB Footprints
MPT-06-01-01-L-RA-LC - SAMTEC PCB footprint - Other - Other - MPT-06-01-01-L-RA-LC-1
click to zoom
3D Models
MPT-06-01-01-L-RA-LC - SAMTEC - 3D model - Other - MPT-06-01-01-L-RA-LC-1
click to zoom

MPT-06-01-01-L-RA-LC Details

  • Manufacturer Part Number:

    MPT-06-01-01-L-RA-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.24

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

MPT-06-01-01-L-RA-LC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MPT-06-01-01-L-RA-LC connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The maximum operating temperature for the MPT-06-01-01-L-RA-LC connector is 125°C (257°F) according to the datasheet.
  • The MPT-06-01-01-L-RA-LC connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to consult with Samtec's technical support for specific environmental requirements and potential modifications.
  • The mating cycle life of the MPT-06-01-01-L-RA-LC connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPT-06-01-01-L-RA-LC Overview

Use the download button to access the MPT-06-01-01-L-RA-LC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPT-0, or try a keyword search, such as Power Connectors
