MPT-06-01-01-L-RA-SD - SAMTEC

Description: Samtec MPT Series, 5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination

Download MPT-06-01-01-L-RA-SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

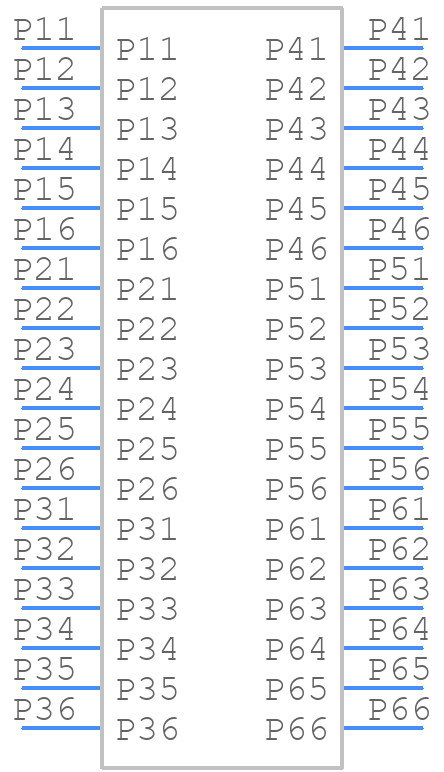

MPT-06-01-01-L-RA-SD - SAMTEC - PCB symbol
click to zoom
PCB Footprints

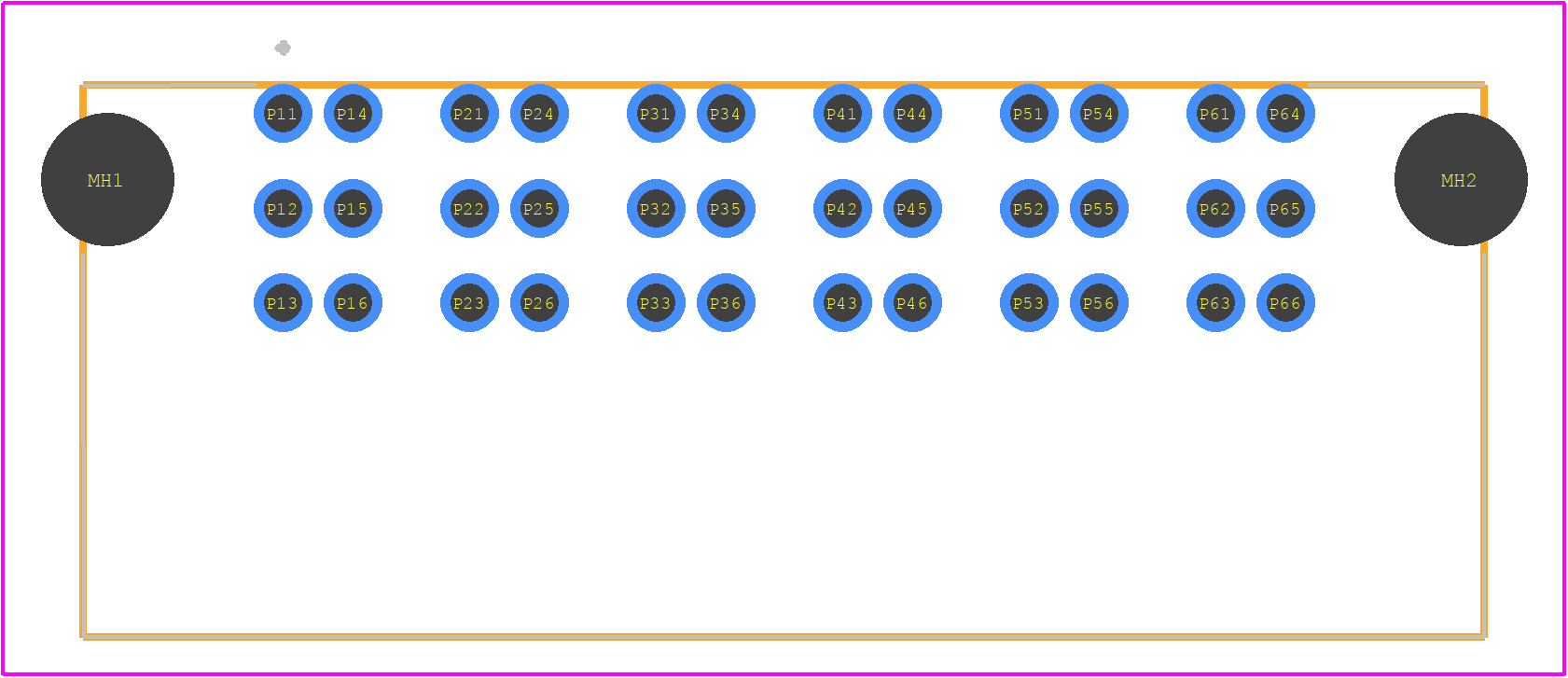

MPT-06-01-01-L-RA-SD - SAMTEC PCB footprint - Other - Other - MPT-06-01-03-L-RA-SD-3
click to zoom
3D Models
MPT-06-01-01-L-RA-SD - SAMTEC - 3D model - Other - MPT-06-01-03-L-RA-SD-3
click to zoom

MPT-06-01-01-L-RA-SD Details

  • Manufacturer Part Number:

    MPT-06-01-01-L-RA-SD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.479 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

MPT-06-01-01-L-RA-SD Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MPT-06-01-01-L-RA-SD connector is designed to withstand high-vibration environments. Samtec recommends following their application notes for proper mounting and screw torque to ensure reliable performance.
  • The MPT-06-01-01-L-RA-SD connector has an operating temperature range of -55°C to 125°C (-65°F to 257°F) according to Samtec's datasheet.
  • Yes, the MPT-06-01-01-L-RA-SD connector is compatible with lead-free soldering processes. Samtec recommends following their recommended soldering profiles to ensure reliable assembly.
  • The MPT-06-01-01-L-RA-SD connector is rated for a minimum of 500 mating cycles according to Samtec's datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPT-06-01-01-L-RA-SD Overview

Use the download button to access the MPT-06-01-01-L-RA-SD schematic symbol, PCB footprint, and 3D model.
