MPT-06-01-03-L-RA-SD - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Blade Terminal Strip

Download MPT-06-01-03-L-RA-SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

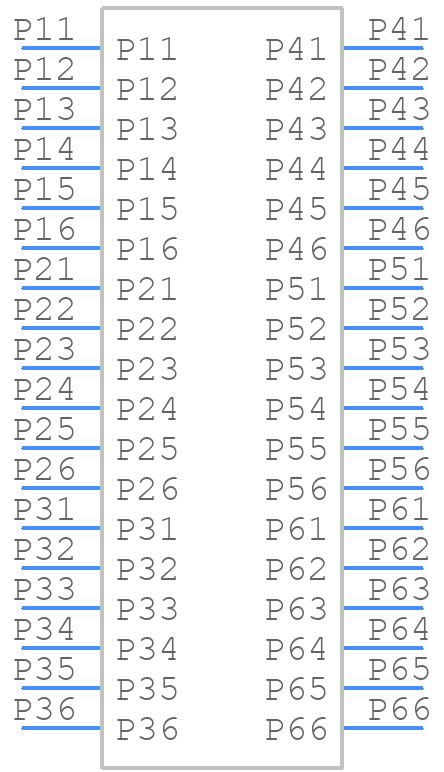

MPT-06-01-03-L-RA-SD - SAMTEC - PCB symbol
click to zoom
PCB Footprints

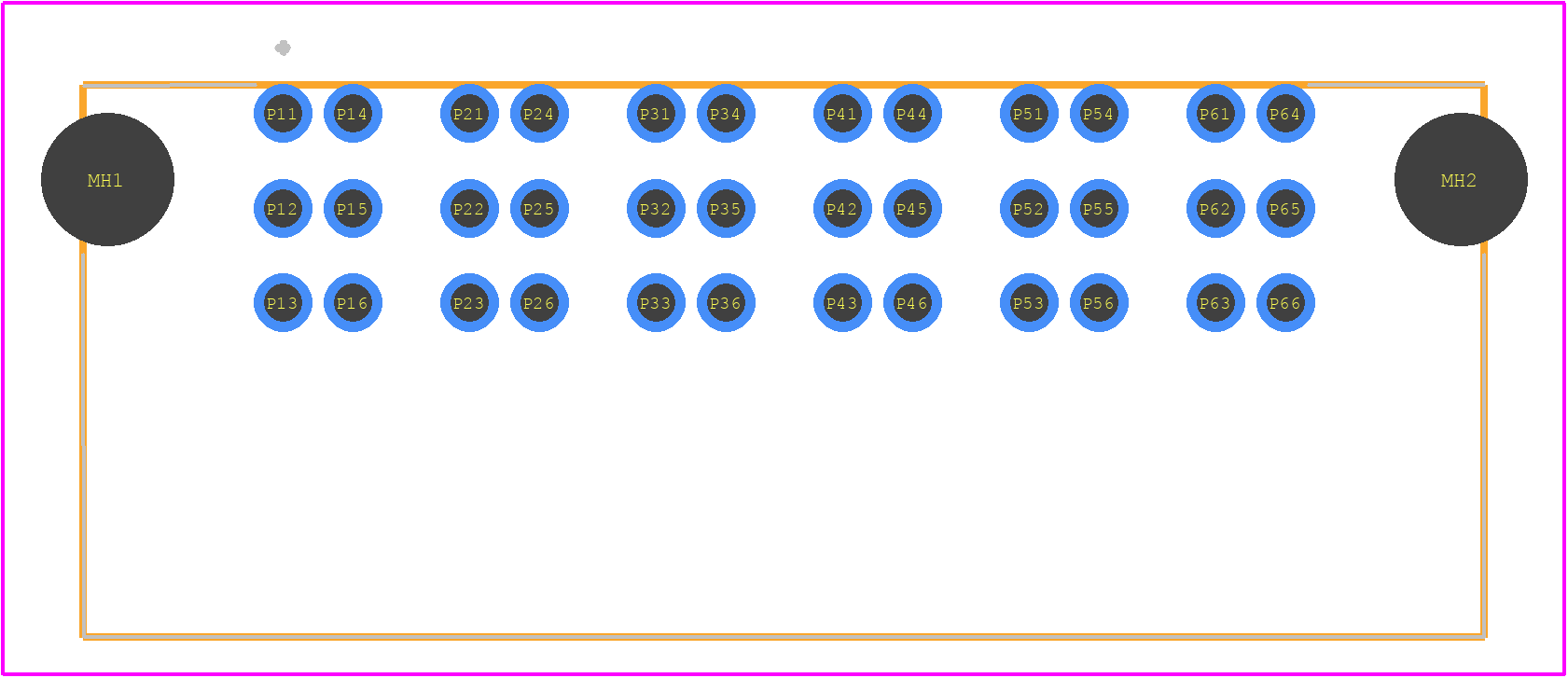

MPT-06-01-03-L-RA-SD - SAMTEC PCB footprint - Other - Other - MPT-06-01-03-L-RA-SD-3
click to zoom
3D Models
MPT-06-01-03-L-RA-SD - SAMTEC - 3D model - Other - MPT-06-01-03-L-RA-SD-3
click to zoom

MPT-06-01-03-L-RA-SD Details

  • Manufacturer Part Number:

    MPT-06-01-03-L-RA-SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.479 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

MPT-06-01-03-L-RA-SD Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MPT-06-01-03-L-RA-SD connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the MPT-06-01-03-L-RA-SD connector is 125°C (257°F) according to Samtec's datasheet.
  • The MPT-06-01-03-L-RA-SD connector is not sealed or waterproof. Samtec recommends using a sealed or waterproof connector or applying additional sealing measures to ensure reliability in humid or wet environments.
  • The mating cycle life of the MPT-06-01-03-L-RA-SD connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPT-06-01-03-L-RA-SD Overview

Use the download button to access the MPT-06-01-03-L-RA-SD schematic symbol, PCB footprint, and 3D model.
