MPT-08-01-01-L-RA-SD - SAMTEC

Description: Samtec MPT Series, 5mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination

Download MPT-08-01-01-L-RA-SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

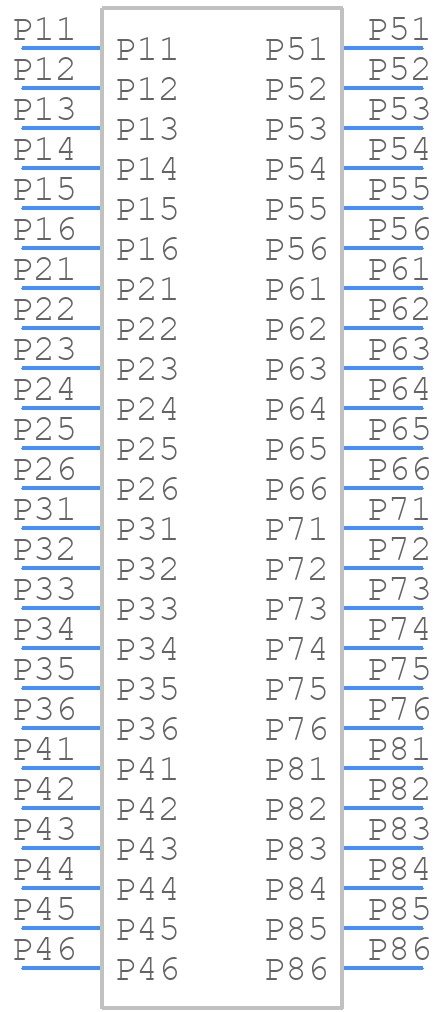

MPT-08-01-01-L-RA-SD - SAMTEC - PCB symbol
click to zoom
PCB Footprints

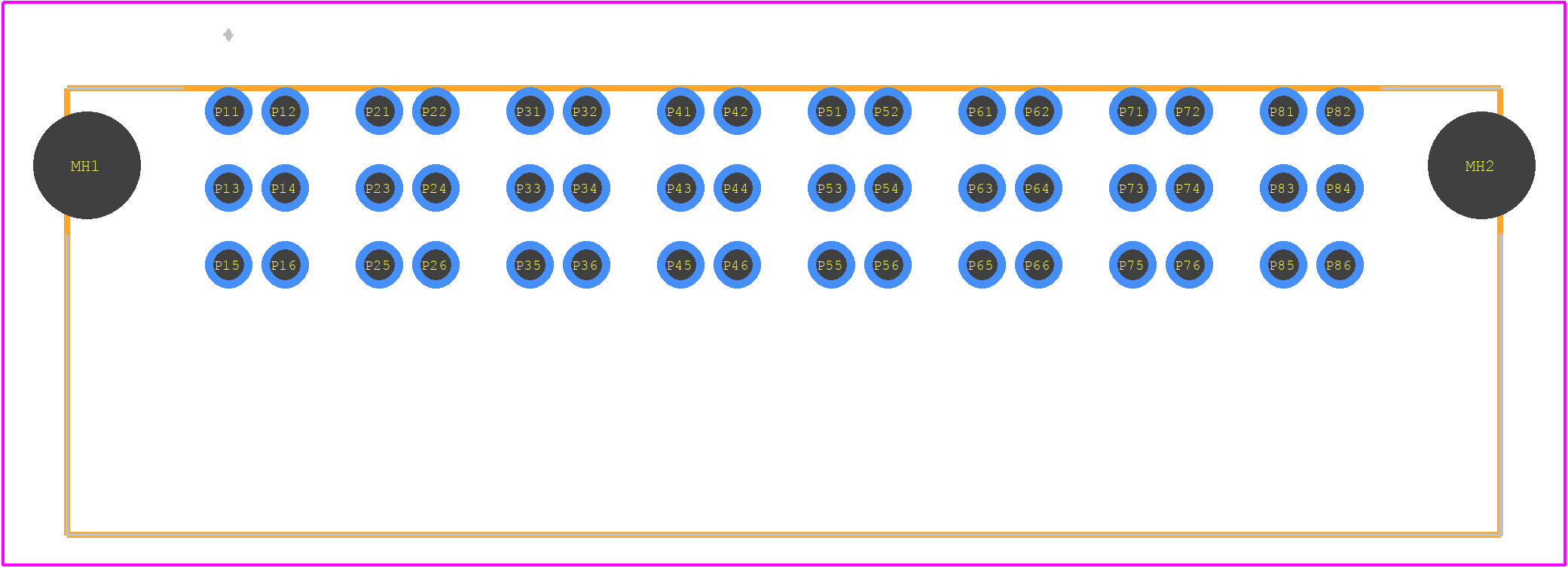

MPT-08-01-01-L-RA-SD - SAMTEC PCB footprint - Other - Other - MPT-08-01-01-L-RA-SD-1
click to zoom
3D Models
MPT-08-01-01-L-RA-SD - SAMTEC - 3D model - Other - MPT-08-01-01-L-RA-SD-1
click to zoom

MPT-08-01-01-L-RA-SD Details

  • Manufacturer Part Number:

    MPT-08-01-01-L-RA-SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.873 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

MPT-08-01-01-L-RA-SD Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the MPT-08-01-01-L-RA-SD is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • The operating temperature range for the MPT-08-01-01-L-RA-SD is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • Yes, the MPT-08-01-01-L-RA-SD is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly processes.
  • The MPT-08-01-01-L-RA-SD has a mating cycle life of 500 cycles, making it suitable for use in applications where frequent connections and disconnections are required.
