MPX5100GP - NXP

Description: Board Mount Pressure Sensor 0kPa to 100kPa Gage Automotive 6-Pin Case 867B-04 Tray

Download MPX5100GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

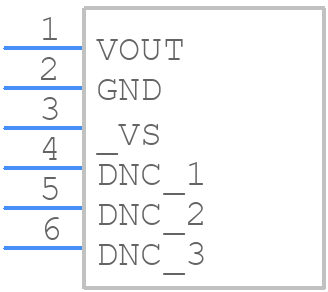

MPX5100GP - NXP - PCB symbol
click to zoom
PCB Footprints
MPX5100GP - NXP PCB footprint - Other - Other - MPX5100GP-4
click to zoom
3D Models
MPX5100GP - NXP - 3D model - Other - MPX5100GP-4
click to zoom

MPX5100GP Details

  • Manufacturer Part Number:

    MPX5100GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, CASE 867B, UNIBODY PACKAGE-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    SENSITIVITY 45 MILLI VOLT PER KILO PASCAL, TEMPERATURE COMPENSATED

  • Body Breadth:

    8 mm

  • Body Height:

    17.78 mm

  • Body Length or Diameter:

    29.465 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Linearity (%):

    2.5 %

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    ROUND

  • Port Type:

    BARBED

  • Pressure Range-Max:

    14.5 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Nickel/Palladium (Ni/Pd)

  • Termination Type:

    SOLDER

MPX5100GP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPX5100GP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPX5100GP involves applying known pressures and measuring the corresponding output voltages. A linear regression can then be performed to determine the sensitivity and offset of the sensor.
  • The MPX5100GP is designed to operate up to 10 times the maximum rated pressure (500 mbar) for a short duration (less than 1 second) without damage. However, continuous operation above the maximum rated pressure is not recommended.
  • Temperature compensation of the MPX5100GP can be achieved by using a thermistor or a temperature sensor to measure the temperature and then applying a correction factor to the output voltage based on the temperature coefficient specified in the datasheet.
  • The recommended power-on sequence for the MPX5100GP is to first apply the power supply voltage (VCC) and then the input voltage (VIN) to the sensor. This ensures that the internal voltage regulator is stabilized before the sensor is enabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPX5100GP Overview

Use the download button to access the MPX5100GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPX51, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
