- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPX5700DP
- Part Number MPX5700DP
- Manufacturer Motorola
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOT1756-1
- Released Date Jan 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPX5700DP Details
-
Manufacturer Part Number:
MPX5700DP
-
Part Life Cycle Code:
Transferred
-
Package Description:
PLASTIC, UNIBODY PACKAGE-6
-
Manufacturer:
Motorola Semiconductor Products
-
Accuracy-Max (%):
2.5%
-
Additional Feature:
TEMPERATURE COMPENSATED, SIGNAL CONDITIONED
-
Body Breadth:
10.67 mm
-
Body Height:
28.7 mm
-
Body Length or Diameter:
29.46 mm
-
Housing:
PLASTIC
-
Linearity (%):
2.5 %
MPX5700DP Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the MPX5700DP involves placing the sensor on a dedicated PCB with a solid ground plane, using a 4-layer PCB with a dedicated power plane, and keeping the signal traces as short as possible to minimize noise and interference.
-
Calibration of the MPX5700DP involves applying a known pressure to the sensor and measuring the output voltage. The sensor should be calibrated at multiple pressure points to ensure linearity and accuracy. A calibration curve can be generated using a polynomial equation or a look-up table.
-
The MPX5700DP's accuracy is affected by temperature changes. The sensor's output voltage changes by approximately 0.5% per degree Celsius. Temperature compensation can be achieved using an external temperature sensor and a microcontroller to adjust the output voltage accordingly.
-
The MPX5700DP is not designed for use in humid or wet environments. The sensor's package is not hermetically sealed, and exposure to moisture can cause corrosion and affect its performance. If the sensor must be used in a humid environment, it should be protected with a conformal coating or a waterproof enclosure.
-
The recommended power supply for the MPX5700DP is a regulated 5V DC power supply with a minimum of 10mA current capability. The power supply should be decoupled with a 10uF capacitor to minimize noise and ripple.
Trust Checks
Expert Contribution
System Verified
Community Approved
MPX5700DP Overview

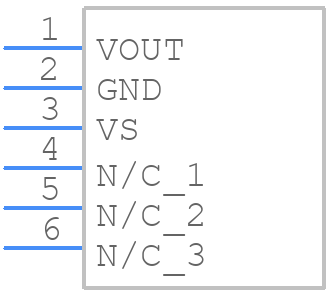

Use the download button to access the MPX5700DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPX57,
or try a keyword search, such as Pressure Sensors
