MPX5700DP - NXP

Description: Pressure Sensor 101.53PSI (700kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 0.2 V ~ 4.7 V 6-SIP Module

Download MPX5700DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

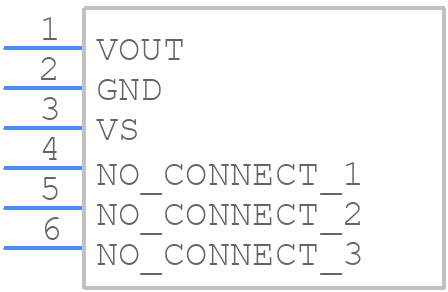

Symbol
MPX5700DP - NXP - PCB symbol
click to zoom
PCB Footprints
MPX5700DP - NXP PCB footprint - Other - Other - SOT1756-1_2026
click to zoom
3D Models
MPX5700DP - NXP - 3D model - Other - SOT1756-1_2026
click to zoom

MPX5700DP Details

  • Manufacturer Part Number:

    MPX5700DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, UNBODY PACKAGE-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    10.67 mm

  • Body Height:

    28.7 mm

  • Body Length or Diameter:

    29.46 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    2.5 %

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Port Type:

    BARBLESS

  • Pressure Range-Max:

    101.5 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

MPX5700DP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPX5700DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPX5700DP involves applying known pressures and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
  • The MPX5700DP's accuracy is affected by temperature, with a typical temperature coefficient of ±0.5% per °C. Temperature compensation can be achieved using an external temperature sensor and calibration data.
  • The MPX5700DP is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
  • The recommended power supply voltage for the MPX5700DP is 5V ±10%. A regulated power supply is recommended to minimize noise and ensure accurate readings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPX5700DP Overview

Use the download button to access the MPX5700DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPX57, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
