- Part Number MPXA4115A6U
- Manufacturer NXP
- Pin Count 8
- Part Category Undefined or Miscellaneous
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - CASE 482-01
- Released Date Sep 29, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPXA4115A6U Details
-
Manufacturer Part Number:
MPXA4115A6U
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
PLASTIC, SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Accuracy-Max (%):
1.5%
-
Additional Feature:
TEMPERATURE COMPENSATED, SIGNAL CONDITION
MPXA4115A6U Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout and land pattern in the MPXA4115A6U application note (AN1926). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
-
Calibration involves adjusting the sensor's offset and span to match the specific pressure range and desired output signal. NXP provides a calibration procedure in the MPXA4115A6U datasheet and application note (AN1926).
-
To prevent damage, it's recommended to power up the VCC pin before applying the Vout pin. A power-on sequence of VCC > Vout is recommended to ensure proper operation.
-
The MPXA4115A6U has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded.
-
The MPXA4115A6U is rated for pressures up to 15 psi (103 kPa). Exceeding this pressure may damage the sensor or affect its accuracy.
Trust Checks
Community Provided
System Verified
Community Approved
MPXA4115A6U Overview

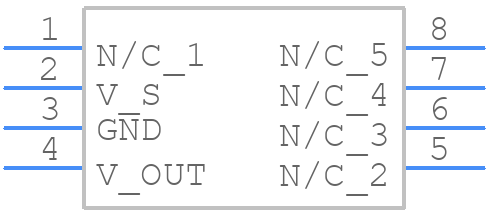

Use the download button to access the MPXA4115A6U schematic symbol, PCB footprint, and 3D model.
