MPXA4250AC6U - NXP

Description: NXP - MPXA4250AC6U - IC, PRESSURE SENSOR

Download MPXA4250AC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

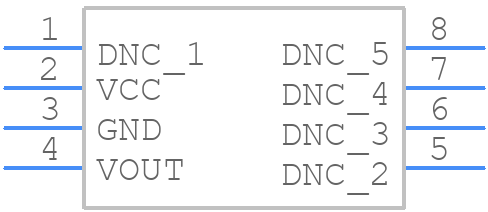

Symbol
MPXA4250AC6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXA4250AC6U - NXP PCB footprint - Small Outline Packages - Small Outline Packages - CASE 482A–01 ISSUE A
click to zoom
3D Models
MPXA4250AC6U - NXP - 3D model - Small Outline Packages - CASE 482A–01 ISSUE A
click to zoom

MPXA4250AC6U Details

  • Manufacturer Part Number:

    MPXA4250AC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITIONED

  • Body Breadth:

    10.665 mm

  • Body Height:

    12.955 mm

  • Body Length or Diameter:

    10.665 mm

  • Housing:

    PLASTIC/EPOXY

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.204V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.826-4.966V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    36.25 Psi

  • Pressure Range-Min:

    2.9 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.35 V

  • Supply Voltage-Min:

    4.85 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXA4250AC6U Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXA4250AC6U involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXA4250AC6U typically involves applying known pressures to the sensor and measuring the corresponding output voltages. A linear regression can then be used to determine the sensor's sensitivity and offset.
  • The MPXA4250AC6U is specified to measure pressures up to 25 psi (172 kPa), but it can be used to measure higher pressures with reduced accuracy. However, exceeding the maximum rated pressure can damage the sensor.
  • Temperature compensation of the MPXA4250AC6U can be achieved by using a thermistor or other temperature sensor to measure the temperature, and then using a lookup table or mathematical model to correct for temperature-related errors.
  • The recommended power supply voltage for the MPXA4250AC6U is 5V ± 10%, with a minimum of 4.5V and a maximum of 5.5V.
