MPXH6115AC6T1 - NXP

Description: Board Mount Pressure Sensors SSOP INTERGATED

Download MPXH6115AC6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

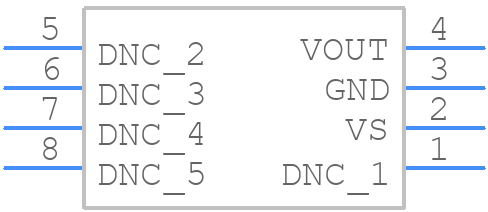

MPXH6115AC6T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPXH6115AC6T1 - NXP PCB footprint - Other - Other - 8LD, PORTED SSOP
click to zoom
3D Models
MPXH6115AC6T1 - NXP - 3D model - Other - 8LD, PORTED SSOP
click to zoom

MPXH6115AC6T1 Details

  • Manufacturer Part Number:

    MPXH6115AC6T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION, SENSITIVITY VALUE IS 45.9

  • Body Breadth:

    8.5 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    8.5 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.80V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    16.7 Psi

  • Pressure Range-Min:

    2.2 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER
