MPXH6300AC6T1 - NXP

Description: Board Mount Pressure Sensors SSOP INTEG PORTED

Download MPXH6300AC6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

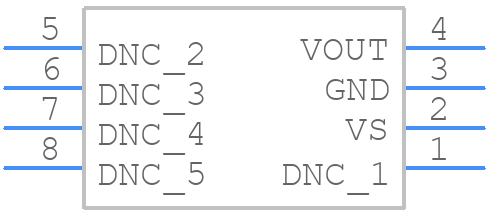

MPXH6300AC6T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPXH6300AC6T1 - NXP PCB footprint - Other - Other - SOT1710-1
click to zoom
3D Models
MPXH6300AC6T1 - NXP - 3D model - Other - SOT1710-1
click to zoom

MPXH6300AC6T1 Details

  • Manufacturer Part Number:

    MPXH6300AC6T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    8.51 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    8.51 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.30V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.30-4.90V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    42 Psi

  • Pressure Range-Min:

    3 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.46 V

  • Supply Voltage-Min:

    4.74 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXH6300AC6T1 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in their application note AN12278, which should be followed to ensure optimal performance and minimize noise.
  • Calibration involves compensating for offset, sensitivity, and temperature effects. NXP provides a calibration procedure in their application note AN12278, which involves measuring the sensor's output at multiple pressures and temperatures.
  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the analog output voltage. This sequence helps prevent damage to the sensor due to voltage spikes or transients.
  • To minimize EMI and RFI, use a shielded cable, keep the sensor and signal lines as short as possible, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The maximum allowable pressure range is 1000 mbar. Exceeding this range may cause permanent damage to the sensor or affect its accuracy. It's essential to ensure the sensor is not subjected to pressures beyond its specified range.
