MPXH6400AC6T1 - NXP

Description: Board Mount Pressure Sensor 0.2V to 4.8V 20kPa to 400kPa Absolute Automotive 8-Pin SSOP T/R

Download MPXH6400AC6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

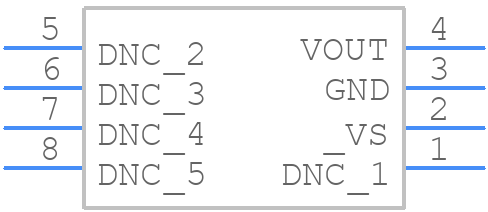

MPXH6400AC6T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPXH6400AC6T1 - NXP PCB footprint - Other - Other - MPXH6400AC6T1-2
click to zoom
3D Models
MPXH6400AC6T1 - NXP - 3D model - Other - MPXH6400AC6T1-2
click to zoom

MPXH6400AC6T1 Details

  • Manufacturer Part Number:

    MPXH6400AC6T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    8.5 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    8.5 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.80V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    58 Psi

  • Pressure Range-Min:

    3 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.36 V

  • Supply Voltage-Min:

    4.64 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXH6400AC6T1 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXH6400AC6T1 application note (AN12245). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
  • Calibration involves adjusting the sensor's output to match the specific pressure range and desired output signal. NXP provides a calibration procedure in the MPXH6400AC6T1 datasheet, which involves applying known pressures and measuring the output voltage.
  • To ensure proper operation, it's recommended to power up the sensor's VCC pin before applying the analog supply voltage (VDD). This sequence helps prevent latch-up and ensures stable operation.
  • To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques. NXP recommends using a shielded cable and a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The MPXH6400AC6T1 is rated for operation from -40°C to 125°C. However, the sensor's accuracy and linearity may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications and limitations.
