MPXHZ6400AC6T1 - NXP

Description: Pressure Sensor 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) Absolute Male - 0.13" (3.3mm) Tube 0.2 V ~ 4.8 V 8-SOIC (0.335", 8.50mm Width), Top Port

Download MPXHZ6400AC6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

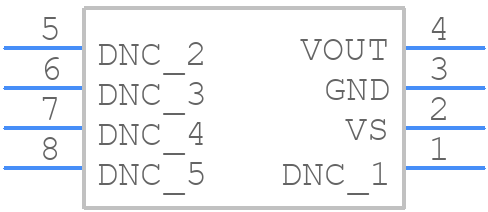

MPXHZ6400AC6T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPXHZ6400AC6T1 - NXP PCB footprint - Other - Other - 8.255mm x 8.255mm x 9.906mm
click to zoom
3D Models
MPXHZ6400AC6T1 - NXP - 3D model - Other - 8.255mm x 8.255mm x 9.906mm
click to zoom

MPXHZ6400AC6T1 Details

  • Manufacturer Part Number:

    MPXHZ6400AC6T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    8.5 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    8.5 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.80V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    58 Psi

  • Pressure Range-Min:

    3 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.36 V

  • Supply Voltage-Min:

    4.64 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXHZ6400AC6T1 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXHZ6400AC6T1 application note (AN12242). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
  • Calibration involves adjusting the sensor's output to match the desired pressure range. NXP provides a calibration procedure in the datasheet, which involves applying known pressures and measuring the output voltage. You can also use NXP's calibration software tool (MPX-Cal) to simplify the process.
  • To ensure proper operation, power up the sensor in the following sequence: VCC, then VDD, and finally the input voltage (VIN). This sequence helps prevent latch-up and ensures the internal voltage regulators function correctly.
  • To minimize EMI and RFI, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and use a low-pass filter or a ferrite bead on the output line. Additionally, ensure good PCB layout practices, such as separating analog and digital grounds.
  • The MPXHZ6400AC6T1 is designed to measure pressures up to 1000 mbar (10 kPa). Exceeding this range may damage the sensor or affect its accuracy.
