MPXV4006DP - NXP

Description: Pressure Sensor 0.2V to 4.8V 0kPa to 6kPa Differential 8-Pin SNSR Tray

Download MPXV4006DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

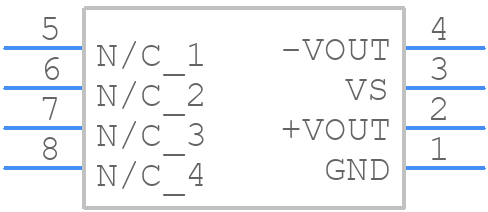

MPXV4006DP - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV4006DP - NXP PCB footprint - Other - Other - MPXV4006DP-5
click to zoom
3D Models
MPXV4006DP - NXP - 3D model - Other - MPXV4006DP-5
click to zoom

MPXV4006DP Details

  • Manufacturer Part Number:

    MPXV4006DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    12.06 mm

  • Body Height:

    7.36 mm

  • Body Length or Diameter:

    12.06 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.22V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    10 °C

  • Output Range:

    0.26-4.86V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    0.87 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV4006DP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV4006DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXV4006DP involves applying known pressures to the sensor and measuring the corresponding output voltages. A calibration curve can then be generated to map output voltages to pressure values.
  • The recommended power-on sequence for the MPXV4006DP is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To minimize EMI with the MPXV4006DP, use a shielded cable for the sensor's output signal, keep the sensor away from high-frequency sources, and use a low-pass filter to filter out high-frequency noise.
  • The MPXV4006DP can measure pressures up to 400 kPa (58 psi). Exceeding this pressure range may damage the sensor.
