MPXV4115VC6U - NXP

Description: Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated, and Calibrated.

Download MPXV4115VC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

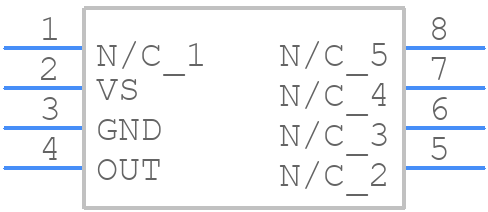

MPXV4115VC6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV4115VC6U - NXP PCB footprint - Other - Other - SOP(Case 482)
click to zoom
3D Models
MPXV4115VC6U - NXP - 3D model - Other - SOP(Case 482)
click to zoom

MPXV4115VC6U Details

  • Manufacturer Part Number:

    MPXV4115VC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PLASTIC, SO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.66 mm

  • Body Height:

    6.6 mm

  • Body Length or Diameter:

    10.66 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.53-4.66V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Min:

    -16.67 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV4115VC6U Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV4115VC6U involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXV4115VC6U involves applying a known pressure to the sensor and measuring the output voltage. The sensor's output can then be correlated to the applied pressure using a calibration curve or equation.
  • The recommended power-on sequence for the MPXV4115VC6U is to apply the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal voltage regulator is stable before the sensor is powered up.
  • To minimize EMI with the MPXV4115VC6U, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and use a low-pass filter to filter out high-frequency noise.
  • The maximum pressure rating for the MPXV4115VC6U is 15 psi (103 kPa). Exceeding this pressure may damage the sensor.
