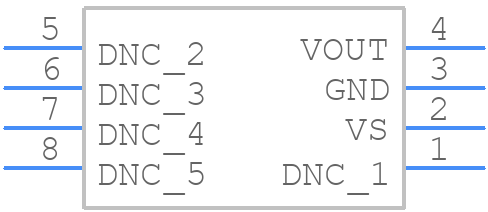

Symbol

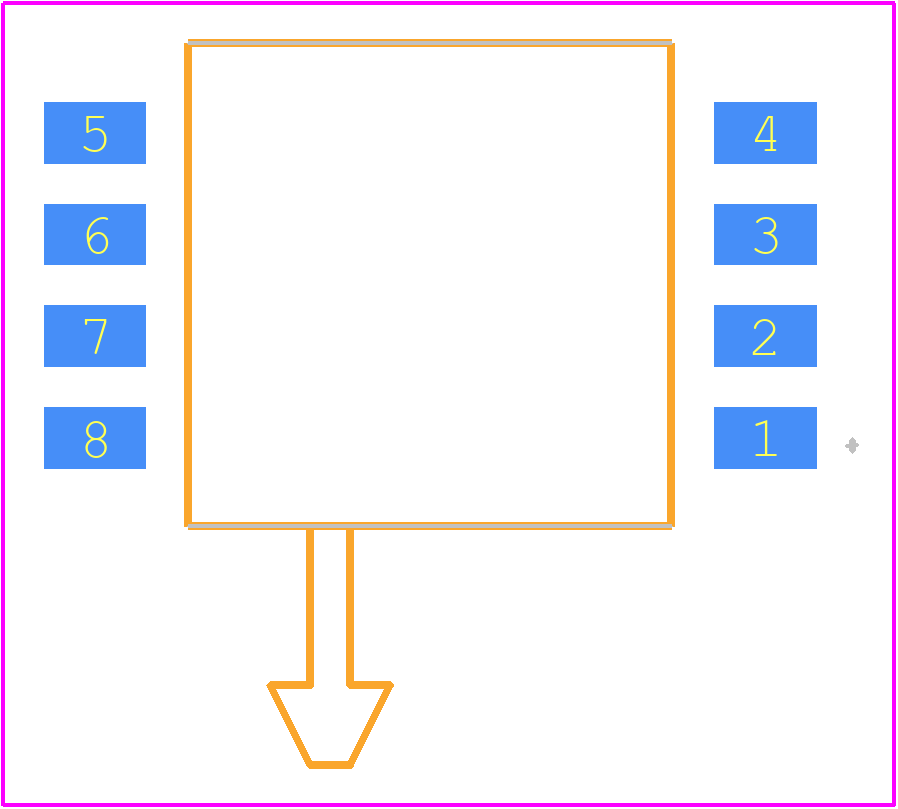

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPXV5004GP
- Part Number MPXV5004GP
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MPXV5004GP-4
- Released Date Mar 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPXV5004GP Details
-
Manufacturer Part Number:
MPXV5004GP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
PLASTIC, SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0.4
-
Accuracy-Max (%):
6.25%
-
Additional Feature:
TEMPERATURE COMPENSATED
MPXV5004GP Frequently Asked Questions (FAQs)
-
A good PCB layout for the MPXV5004GP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPXV5004GP involves applying a known pressure to the sensor and measuring the output voltage. The sensor's sensitivity and offset can then be calculated using the measured values.
-
The MPXV5004GP can withstand pressures up to 10 times the maximum rated pressure (500 mbar) for a short duration (less than 1 second) without damage. However, continuous exposure to pressures above the maximum rated pressure can cause damage to the sensor.
-
The MPXV5004GP is not designed for use in humid or wet environments. Exposure to moisture can cause corrosion and damage to the sensor. If you need to use the sensor in a humid or wet environment, you should take appropriate precautions such as using a waterproof coating or enclosure.
-
Noise and interference in the MPXV5004GP output signal can be filtered out using a low-pass filter or a band-pass filter. The filter design will depend on the specific application and the frequency range of interest.
Trust Checks
Expert Contribution
System Verified
Community Approved
MPXV5004GP Overview
Use the download button to access the MPXV5004GP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXV5,
or try a keyword search, such as Pressure Sensors
