- Part Number MPXV5050GP
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - CASE 1369-01
- Released Date Sep 26, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPXV5050GP Details
-
Manufacturer Part Number:
MPXV5050GP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Accuracy-Max (%):
2.5%
-
Additional Feature:
SENSITIVITY 90 MILLI VOLT PER KILO PASCAL, TEMPERATURE COMPENSATED
MPXV5050GP Frequently Asked Questions (FAQs)
-
A good PCB layout for the MPXV5050GP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPXV5050GP involves applying known pressures and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
-
The MPXV5050GP's accuracy is affected by temperature, with a typical temperature coefficient of ±0.5% per °C. Temperature compensation can be achieved using an external temperature sensor and software correction.
-
The MPXV5050GP is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
-
The recommended power supply voltage for the MPXV5050GP is between 4.75V and 5.25V. Operating the sensor outside of this range may affect its accuracy and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
MPXV5050GP Overview

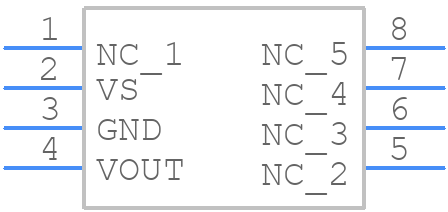

Use the download button to access the MPXV5050GP schematic symbol, PCB footprint, and 3D model.
