- Part Number MPXV5100DP
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MPXV5100DP-2
- Released Date Mar 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPXV5100DP Details
-
Manufacturer Part Number:
MPXV5100DP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
CASE 1351-01, SMT-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Accuracy-Max (%):
2.5%
-
Additional Feature:
SENSITIVITY 45 MILLI VOLT PER KILO PASCAL, TEMPERATURE COMPENSATED
-
Body Breadth:
12.06 mm
MPXV5100DP Frequently Asked Questions (FAQs)
-
A good PCB layout for the MPXV5100DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPXV5100DP involves applying a known pressure to the sensor and measuring the output voltage. The sensor's offset and sensitivity can be calculated using a two-point calibration method.
-
The MPXV5100DP can measure pressures up to 10 times the rated pressure (e.g., 100 kPa for the MPXV5100DP-100 kPa version). However, the sensor's accuracy and linearity may degrade at higher pressures.
-
Temperature compensation can be achieved by using a thermistor or a temperature sensor to measure the temperature and applying a correction factor to the pressure reading. The temperature coefficient of the sensor can be found in the datasheet.
-
The recommended power supply voltage for the MPXV5100DP is between 4.75 V and 5.25 V. Operating the sensor outside of this range may affect its accuracy and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
MPXV5100DP Overview

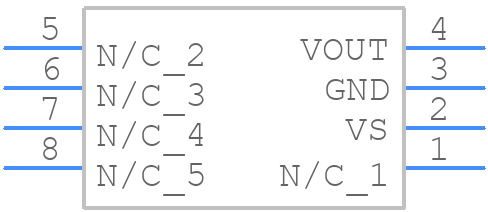

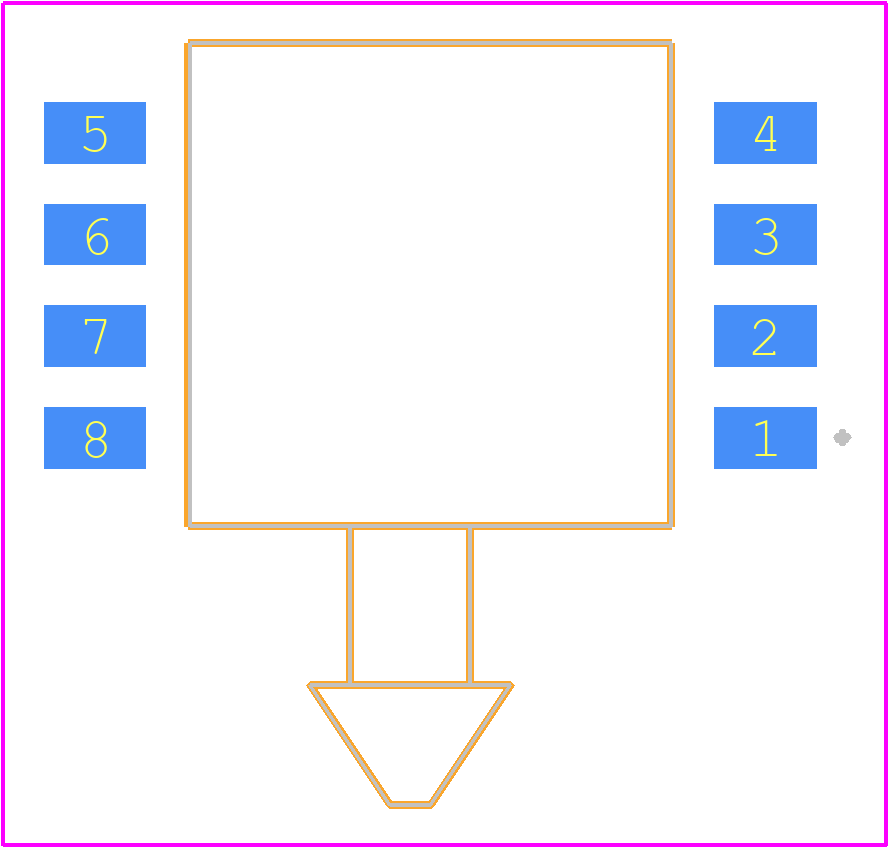

Use the download button to access the MPXV5100DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXV5,
or try a keyword search, such as Pressure Sensors
