- Part Number MPXV6115VC6U
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MPXV6115VC6U-2
- Released Date Feb 4, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPXV6115VC6U Details
-
Manufacturer Part Number:
MPXV6115VC6U
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
PLASTIC, CASE 482A, SOIC-8 PIN
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Accuracy-Max (%):
1.5%
-
Additional Feature:
SENSITIVITY 38.26 MILLI VOLT PER KILO PASCAL, TEMPERATURE COMPENSATED
-
Body Breadth:
10.66 mm
MPXV6115VC6U Frequently Asked Questions (FAQs)
-
A good PCB layout for the MPXV6115VC6U involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPXV6115VC6U involves applying a known pressure to the sensor and measuring the output voltage. The sensor's sensitivity and offset can then be calculated using a two-point calibration method.
-
The recommended power-on sequence for the MPXV6115VC6U is to apply the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal voltage regulator is stable before the sensor starts operating.
-
To minimize EMI with the MPXV6115VC6U, use a shielded cable, keep the sensor away from high-frequency sources, and use a low-pass filter to filter out high-frequency noise.
-
The maximum pressure rating for the MPXV6115VC6U is 10 kPa (1.45 psi). Exceeding this pressure may damage the sensor.
Trust Checks
Expert Contribution
System Verified
Community Approved
MPXV6115VC6U Overview

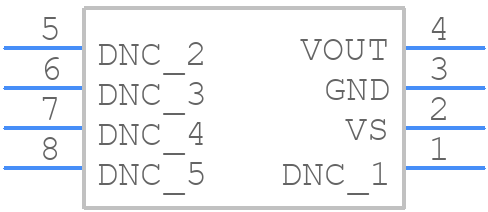

Use the download button to access the MPXV6115VC6U schematic symbol, PCB footprint, and 3D model.
