MPXV7002GC6U - NXP

Description: NXP - MPXV7002GC6U - Pressure Sensor, Gauge, 1 mV/kPa, -2 kPa, 2 kPa, 4.75 V, 5.25 V

Download MPXV7002GC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

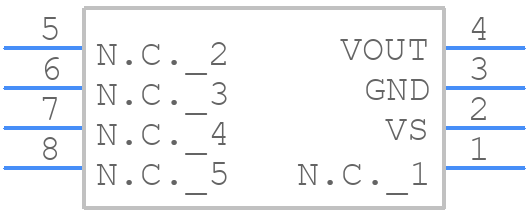

Symbol
MPXV7002GC6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV7002GC6U - NXP PCB footprint - Other - Other - SOT1854-1
click to zoom
3D Models
MPXV7002GC6U - NXP - 3D model - Other - SOT1854-1
click to zoom

MPXV7002GC6U Details

  • Manufacturer Part Number:

    MPXV7002GC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    6.25%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITIONED

  • Body Breadth:

    10.66 mm

  • Body Height:

    25.91 mm

  • Body Length or Diameter:

    10.66 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    6.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    2.50V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    10 °C

  • Output Range:

    2.50-4.50V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.29 Psi

  • Pressure Range-Min:

    -0.29 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV7002GC6U Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV7002GC6U involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXV7002GC6U involves applying known pressures and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
  • The recommended power-on sequence for the MPXV7002GC6U is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To minimize EMI with the MPXV7002GC6U, use a shielded cable, keep the sensor away from high-frequency sources, and use a low-pass filter to filter out high-frequency noise.
  • The MPXV7002GC6U can measure pressures up to 700 kPa (100 psi), but it's recommended to operate within the specified range of 15 kPa to 400 kPa (2 psi to 58 psi) for optimal accuracy and linearity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPXV7002GC6U Overview

Use the download button to access the MPXV7002GC6U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXV7, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
