MPXV7002GP footprint, schematic symbol and 3D model by NXP

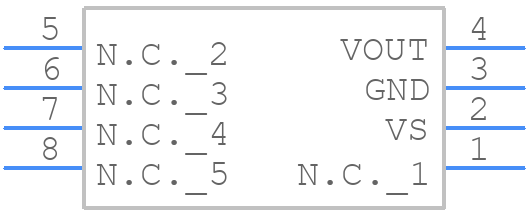

Symbol

click to zoom

PCB Footprints

MPXV7002GP - NXP PCB footprint - Other - Other - SOT1693-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPXV7002GP
Part Number MPXV7002GP
Manufacturer NXP
Pin Count 8
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - SOT1693-3
Released Date Jun 26, 2019
Last Modified Date Mar 28, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MPXV7002GP Details

Manufacturer Part Number:
MPXV7002GP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
52 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
7
Accuracy-Max (%):
6.25%
Additional Feature:
TEMPERATURE COMPENSATED, SIGNAL CONDITIONED
Body Breadth:
10.66 mm
Body Height:
25.91 mm
Body Length or Diameter:
10.66 mm
Housing:
PLASTIC
Linearity (%):
6.25 %
Mounting Feature:
SURFACE MOUNT
Offset-Nom:
2.50V
Operating Current-Max:
10 mA
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
10 °C
Output Range:
2.50-4.50V
Output Type:
ANALOG VOLTAGE
Package Shape/Style:
SQUARE
Port Type:
STRAIGHT
Pressure Range-Max:
0.29 Psi
Pressure Range-Min:
-0.29 Psi
Pressure Sensing Mode:
GAGE
Response Time:
1000 µs
Sensors/Transducers Type:
PRESSURE SENSOR,PIEZORESISTIVE
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Surface Mount:
YES
Termination Type:
SOLDER

MPXV7002GP Frequently Asked Questions (FAQs)

A good PCB layout for the MPXV7002GP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
Calibration of the MPXV7002GP involves applying a known pressure to the sensor and measuring the output voltage. The sensor's offset and sensitivity can then be calculated using a two-point calibration method.
The MPXV7002GP can measure pressures up to 700 kPa (100 psi), but it's recommended to operate within the specified range of 0 to 500 kPa (0 to 72.5 psi) for optimal accuracy and linearity.
Temperature compensation can be achieved by using a thermistor or a temperature sensor to measure the temperature and then applying a correction factor to the pressure reading based on the temperature coefficient specified in the datasheet.
The recommended power supply voltage for the MPXV7002GP is 5V ± 10%, but it can operate with a supply voltage as low as 4.5V and as high as 5.5V.

Trust Checks

Community Provided

System Verified

Community Approved

MPXV7002GP Overview

Use the download button to access the MPXV7002GP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MPXV7, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
