MPXV7007DP - NXP

Description: Pressure Sensor, 5V, -7/7kPa, SOP 8, Dual Port

Download MPXV7007DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

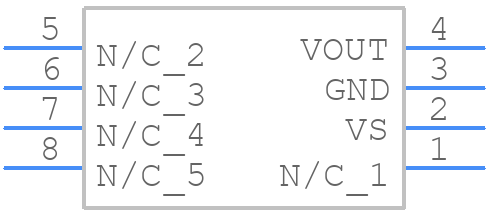

MPXV7007DP - NXP - PCB symbol
click to zoom
PCB Footprints

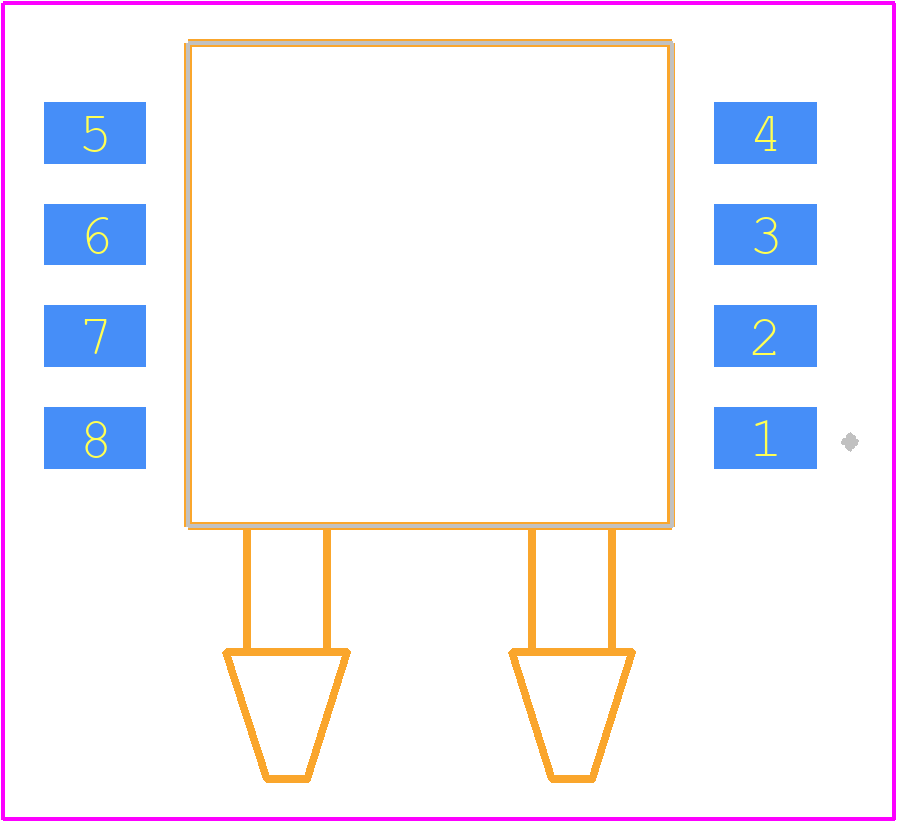

MPXV7007DP - NXP PCB footprint - Other - Other - MPXV7007DP-2
click to zoom
3D Models
MPXV7007DP - NXP - 3D model - Other - MPXV7007DP-2
click to zoom

MPXV7007DP Details

  • Manufacturer Part Number:

    MPXV7007DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    12.06 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    12.06 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.50V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.3-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    1 Psi

  • Pressure Range-Min:

    -1 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV7007DP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV7007DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXV7007DP involves applying known pressures to the sensor and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
  • The MPXV7007DP's accuracy is affected by temperature, with a typical temperature coefficient of ±0.5% per °C. Temperature compensation can be achieved using an external temperature sensor and calibration data.
  • The MPXV7007DP is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
  • The recommended power supply voltage for the MPXV7007DP is 5V ±10%. A stable power supply is essential to ensure accurate pressure measurements.
