MPXV7007GC6U - NXP

Description: Pressure Sensor, 5V, -7/7kPa, SOP 8, Axial Port

Download MPXV7007GC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

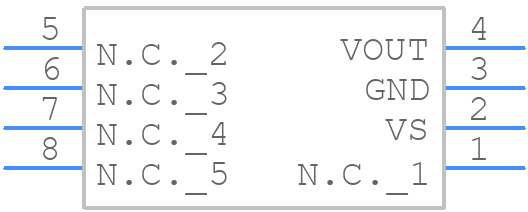

Symbol
MPXV7007GC6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV7007GC6U - NXP PCB footprint - Other - Other - MPXV7007GC6U-3
click to zoom
3D Models
MPXV7007GC6U - NXP - 3D model - Other - MPXV7007GC6U-3
click to zoom

MPXV7007GC6U Details

  • Manufacturer Part Number:

    MPXV7007GC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.66 mm

  • Body Height:

    12.96 mm

  • Body Length or Diameter:

    10.66 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.50V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.3-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    1 Psi

  • Pressure Range-Min:

    -1 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV7007GC6U Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXV7007GC6U application note (AN1926). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
  • Calibration involves adjusting the sensor's output to match the desired pressure range. NXP provides a calibration procedure in the MPXV7007GC6U datasheet, which involves applying known pressures and measuring the output voltage.
  • To prevent damage, it's recommended to power up the sensor's VCC pin before applying the analog output voltage (VOUT). This ensures that the internal circuitry is properly initialized.
  • To minimize EMI and RFI, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and consider adding a low-pass filter to the output signal.
  • The MPXV7007GC6U is designed to measure pressures up to 700 kPa (100 psi). Exceeding this range may damage the sensor or affect its accuracy.
