MPXV7007GP - NXP

Description: Pressure Sensor ±1.02PSI (±7kPa) Compound Male - 0.13" (3.17mm) Tube 0.5 V ~ 4.5 V 8-SMD, Gull Wing, Side Port

Download MPXV7007GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

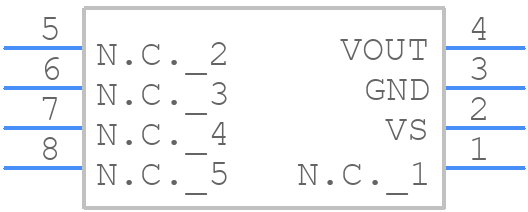

Symbol
MPXV7007GP - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV7007GP - NXP PCB footprint - Other - Other - MPXV7007GP-3
click to zoom
3D Models
MPXV7007GP - NXP - 3D model - Other - MPXV7007GP-3
click to zoom

MPXV7007GP Details

  • Manufacturer Part Number:

    MPXV7007GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    12.06 mm

  • Body Height:

    7.37 mm

  • Body Length or Diameter:

    12.06 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.50V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.3-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    1 Psi

  • Pressure Range-Min:

    -1 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV7007GP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV7007GP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration of the MPXV7007GP involves applying known pressures and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
  • The MPXV7007GP's accuracy is affected by temperature, with a typical temperature coefficient of ±0.5% per °C. Temperature compensation can be achieved using an external temperature sensor and software correction.
  • The MPXV7007GP is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
  • The recommended power supply voltage for the MPXV7007GP is 5V ±10%. A regulated power supply is recommended to minimize noise and ensure accurate readings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPXV7007GP Overview

Use the download button to access the MPXV7007GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXV7, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
