- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPXV7025DP
- Part Number MPXV7025DP
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CASE 1351-01 ISSUE O
- Released Date Dec 11, 2018
- Last Modified Date Dec 21, 2024 9:54 AM UTC
- Pinout / Pin List Click Here (Member Only)
MPXV7025DP Details
-
Manufacturer Part Number:
MPXV7025DP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
PLASTIC, SMT, SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Accuracy-Max (%):
5%
-
Additional Feature:
TEMPERATURE COMPENSATED, SIGNAL CONDITION
MPXV7025DP Frequently Asked Questions (FAQs)
-
A good PCB layout for the MPXV7025DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPXV7025DP involves applying a known pressure to the sensor and measuring the output voltage. The sensor's output can be calibrated using a two-point or multi-point calibration method.
-
Temperature changes can affect the MPXV7025DP's accuracy. The sensor's output voltage can drift with temperature, so it's essential to consider temperature compensation or calibration over the operating temperature range.
-
The MPXV7025DP is not designed for use in humid or wet environments. It's essential to ensure the sensor is protected from moisture and humidity to prevent damage or degradation.
-
The recommended power supply voltage for the MPXV7025DP is between 4.75V and 5.25V. Operating the sensor outside of this range may affect its accuracy or reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
MPXV7025DP Overview

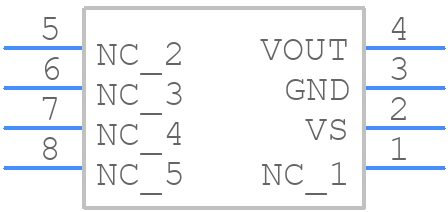

Use the download button to access the MPXV7025DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXV7,
or try a keyword search, such as Pressure Sensors
