MPXV7025GC6U - NXP

Description: Pressure Sensor ±3.63PSI (±25kPa) Compound Male - 0.13" (3.18mm) Tube 0.2 V ~ 4.7 V 8-SMD, Gull Wing, Top Port, -40°C ~ 125°C

Download MPXV7025GC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

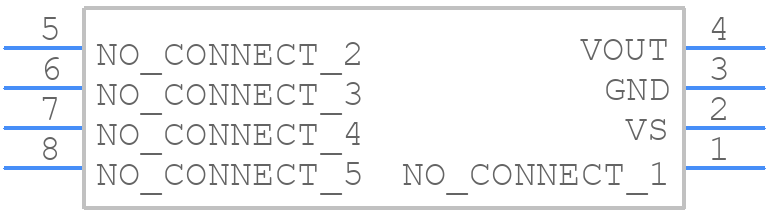

MPXV7025GC6U - NXP - PCB symbol
click to zoom
PCB Footprints

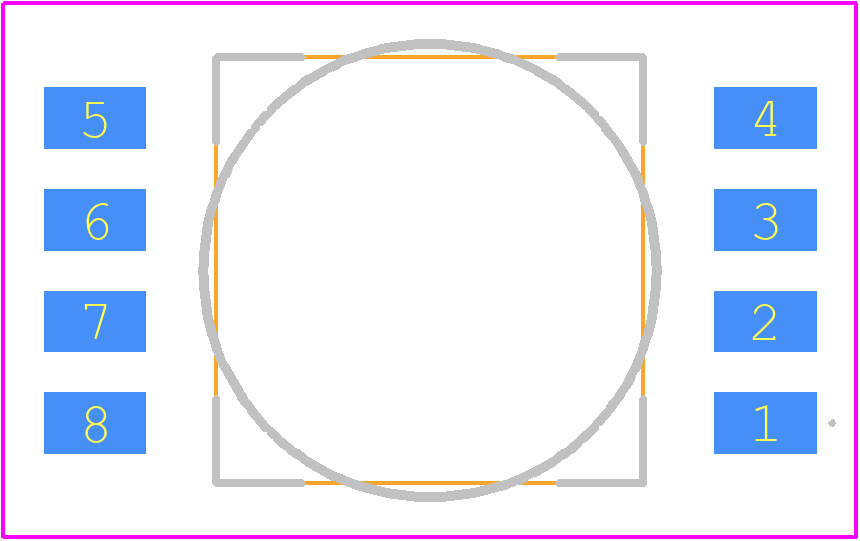

MPXV7025GC6U - NXP PCB footprint - Other - Other - CASE 482A-01 ISSUE A_2025
click to zoom
3D Models
MPXV7025GC6U - NXP - 3D model - Other - CASE 482A-01 ISSUE A_2025
click to zoom

MPXV7025GC6U Details

  • Manufacturer Part Number:

    MPXV7025GC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SMT, SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    10.66 mm

  • Body Height:

    6.605 mm

  • Body Length or Diameter:

    10.66 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.25V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    3.6 Psi

  • Pressure Range-Min:

    -3.6 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV7025GC6U Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXV7025GC6U application note (AN12242). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
  • Calibration involves applying known pressures and measuring the corresponding output voltages. NXP provides a calibration procedure in the MPXV7025GC6U datasheet, which involves applying a series of pressures and recording the output voltages. You can then use these values to create a calibration curve or lookup table.
  • To ensure proper operation, it's recommended to power up the VCC pin before applying the analog supply voltage (VSS). This sequence helps prevent latch-up and ensures the internal voltage regulator operates correctly.
  • To minimize EMI and RFI, use a shielded cable for the sensor's output signal, keep the sensor away from high-frequency sources, and use a low-pass filter or ferrite bead to filter out high-frequency noise.
  • The MPXV7025GC6U is designed to measure pressures up to 25 psi (172 kPa). Exceeding this range may damage the sensor or affect its accuracy.
