MR25H10MDC - Everspin Technologies

Description: NVRAM 1Mb 3V 128Kx8 Serial MRAM

Download MR25H10MDC Model

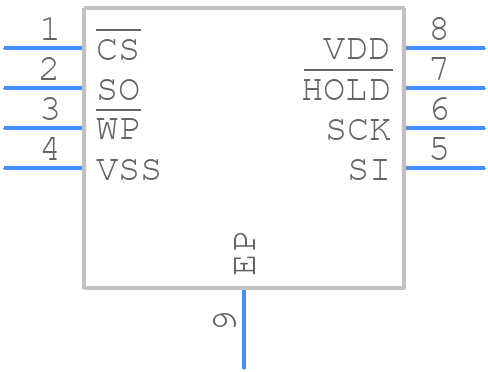

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MR25H10MDC - Everspin Technologies PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN
click to zoom
3D Models
MR25H10MDC - Everspin Technologies  - 3D model - Small Outline No-lead - DFN
click to zoom

MR25H10MDC Details

  • Manufacturer Part Number:

    MR25H10MDC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SON

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Manufacturer:

    Everspin Technologies

  • YTEOL:

    3

  • Clock Frequency-Max (fCLK):

    40 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    MRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TRAY

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000115 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.027 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MR25H10MDC Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MR25H10MDC is 40 MHz.
  • To ensure data integrity during power cycling, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized before accessing the memory.
  • The recommended operating voltage range for the MR25H10MDC is 2.7V to 3.6V.
  • In case of a write error, the device will set the Write Enable Latch (WEL) bit in the Status Register. The host should retry the write operation after resetting the WEL bit.
  • The MR25H10MDC supports up to 1 million write cycles.
